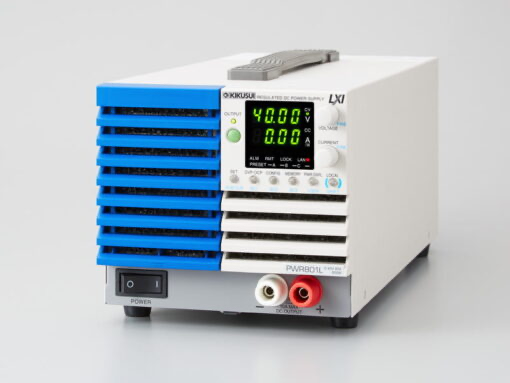

Kikusui PWR-01 Series – 800W model

PWR-01 Series – High-Performance, Versatile DC Power Supply

The PWR-01 Series is a compact, multi-range DC power supply designed to deliver outstanding performance and flexibility. With a total of 16 models, the series covers a wide range of voltage and power requirements, combining advanced functionality, flexible connectivity, and user-friendly operation.

800W DC Power Supply – Available Output Ranges

1. 0–40V / 0–80A

2. 0–80V / 0–40A

3. 0–240V / 0–10A

4. 0–650V / 0–3.75A

Key Features

• Wide Voltage and Power Range

  • Four voltage range configurations: L, ML, MH, and H

  • Available power ratings: 400W, 800W, 1200W, and 2000W

• Integrated Communication Interfaces

  • LAN (LXI compliant), USB, and RS232C as standard for easy system integration and remote control

• Advanced Functions

  • Variable internal resistance function

  • Selectable Bleeder ON/OFF function

  • Internal preset memory for voltage, current, OVP, OCP, and UVL settings

  • Built-in sequence function with support for trigger synchronization

• Remote Control and Monitoring

  • Network-based control and monitoring using VMCB (Virtual Multi-Channel Bus) functionality

• Flexible Configuration and Output Control

  • Quick access to frequently used configurations, with up to 3 configurations available for registration

  • Selectable and enhanced bleeder modes

  • Programmable output ON/OFF delay

  • Soft Start / Soft Stop functions for controlled output transitions

• Reliable Operation in Demanding Environments

  • Guaranteed operation at ambient temperatures up to 50°C

  • Storage temperature range: –25°C to +60°C

  • Universal AC input: 85V to 265V

The PWR-01 Series combines high performance, advanced functionality, flexible connectivity, and a compact design, making it an excellent DC power solution for R&D, production testing, automated test systems, laboratories, and industrial applications.
