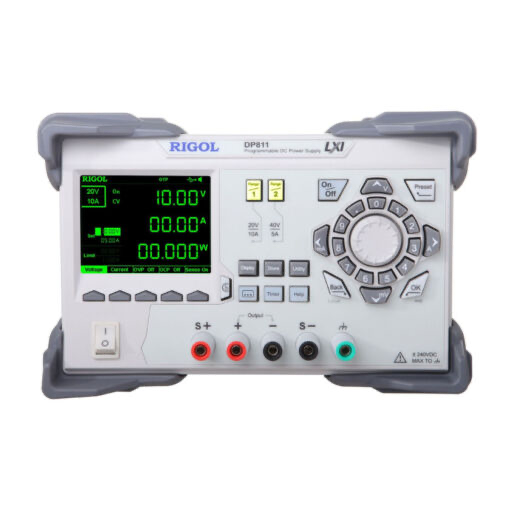

DP811

The DP800 Series Power Supplies are a family of linear power supplies systems with 3 outputs and up to 200 Watts in total. One channel is isolated, so users can reconfigure instruments into any number of systems or applications. Built-in V, A, and W measurements make power monitoring easy, but additional wave tracking, timing, and analysis features mean there are even more ways to use the supplies. Digital triggering between instruments also makes it possible.

1 output, , with remote Sense, total power up to 200W

• 1 outputs, the maximum power is up to 200W
• 20V/10A (Low Range), 40V/5A (High Range)
• Low Ripple and Noise: <350uVrms/2mVpp
• Fast Transient Response Time: < 50us
• Load Regulation Rate: Voltage：< 0.01% + 2mV; Current：< 0.01% + 250uA
• Linear Regulation Rate:Voltage：< 0.01% + 2mV; Current：< 0.01% + 250uA
• Ripples and Noise(20Hz-20MHz):Normal Mode Voltage：<350μVrms/3mVpp; Normal Mode Current：<2mArmss
• Std.Programming resolution:10mV/10mV/10mV.
• Voltage Resolution:1mV/1mV/1mV(option)
• LAN, RS232 and Digital IO Ports (option)
• Online Monitoring & Analysis Function (option)
• Standard Timing output; Built-in V,A,W measurements and waveform display
• 3.5 inch TFT display, easy for operation
