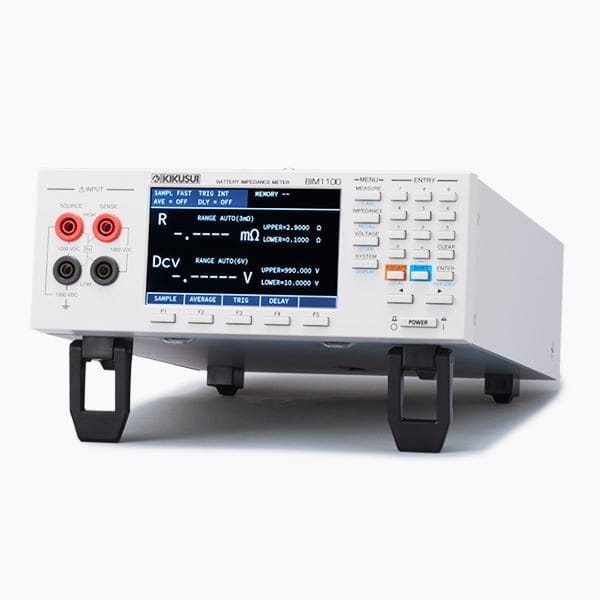

Kikusui BIM1000 Series

Battery Impedance Meter

1 / 2

Price depends on configuration

Available in several configurations and accessory sets. The quote includes price, lead time and a configuration recommended for your application.

Request a quote

Talk to an engineer WhatsApp

This combination does not exist.

Kikusui

Authorized importer and distributor, manufacturer warranty
Technical advice before and after purchase
New unit in the manufacturer’s original packaging

he BIM1000 Series is an advanced solution designed for easy and reliable battery measurements, suitable for evolving battery technologies, especially for high-voltage and high-power electric vehicle batteries.

Key Features:

Voltage Measurement:
- Maximum: 1000V (BIM1100), 300V (BIM1030)
- Accuracy: ±(0.01% of reading + 3 digits)
Resistance Measurement:
- Range: 3 mΩ to 3 Ω
- Accuracy: ±(0.5% of reading + 5 digits)
- High resolution: Voltage - 10 μV (6V range), Resistance - 0.1 μΩ (3 mΩ range)
Measurement Frequency: 1 kHz ± 0.2 Hz
Sampling Speed: Resistance and voltage simultaneous measurements in 20 ms (FAST mode)
Zero Adjustment Function: Reduces errors effectively

Additional Features:

Data Logging: Stores up to 500 measurement pairs with a collective transfer function.
Interfaces: Includes SIGNAL I/O, RS232C, USB, and LAN (standard on BIM1100 and BIM1030 with LAN models).
Display: High-visibility color LCD for intuitive operation.
Comparator Functions: Enables HIGH/LOW settings for resistance and voltage judgment with results displayed clearly.

Applications:

Battery Production Testing: Ideal for quality control in power battery production lines.
Research and Development: Supports development of high-capacity batteries for electric vehicles.

This robust meter is essential for professionals requiring precise and efficient battery voltage and resistance testing, delivering reliability across diverse applications. If you'd like further insights into specific features or need any clarifications, feel free to ask!
