PWR801ML

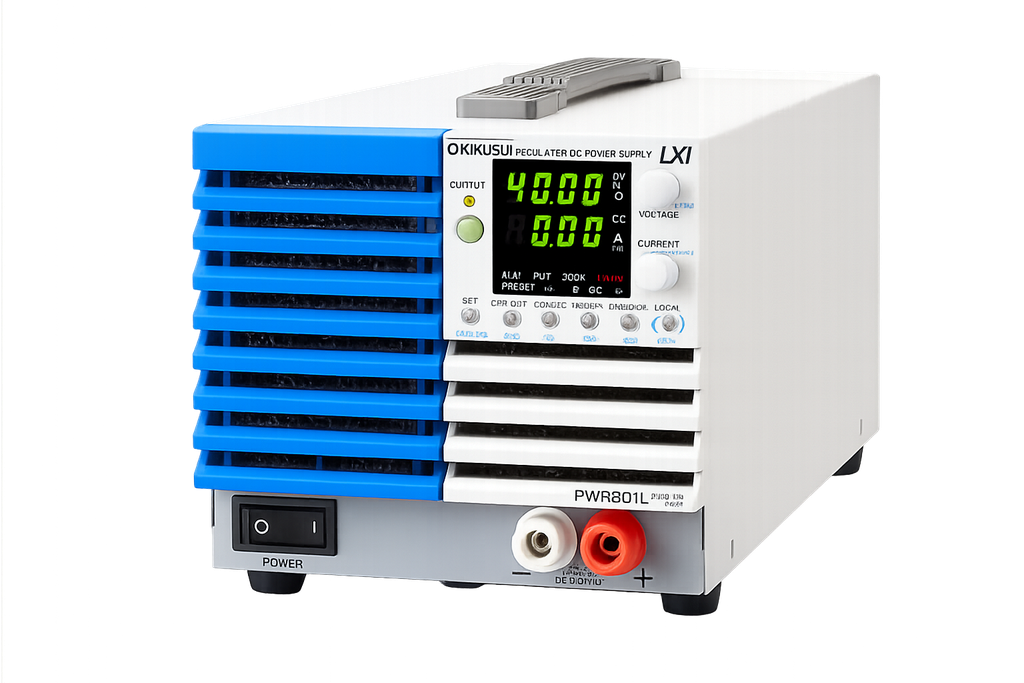

Kikusui Compact Wide Range DC Power Supply 800W, 0 to 80V / 0 to 40A
- Compact Wide-Range DC Power Supply
- Built-in Sequence Function with trigger synchronization capability
- Standard Communication Interfaces: LAN (LXI compliant), USB, and RS-232C
- Virtual Multi-Channel Bus (VMCB) for efficient multi-channel operation
- Front-Panel Output Terminals (standard on all models, up to 10 A)
- Universal AC Input: 85–265 VAC
- Programmable Output ON/OFF Delay Function

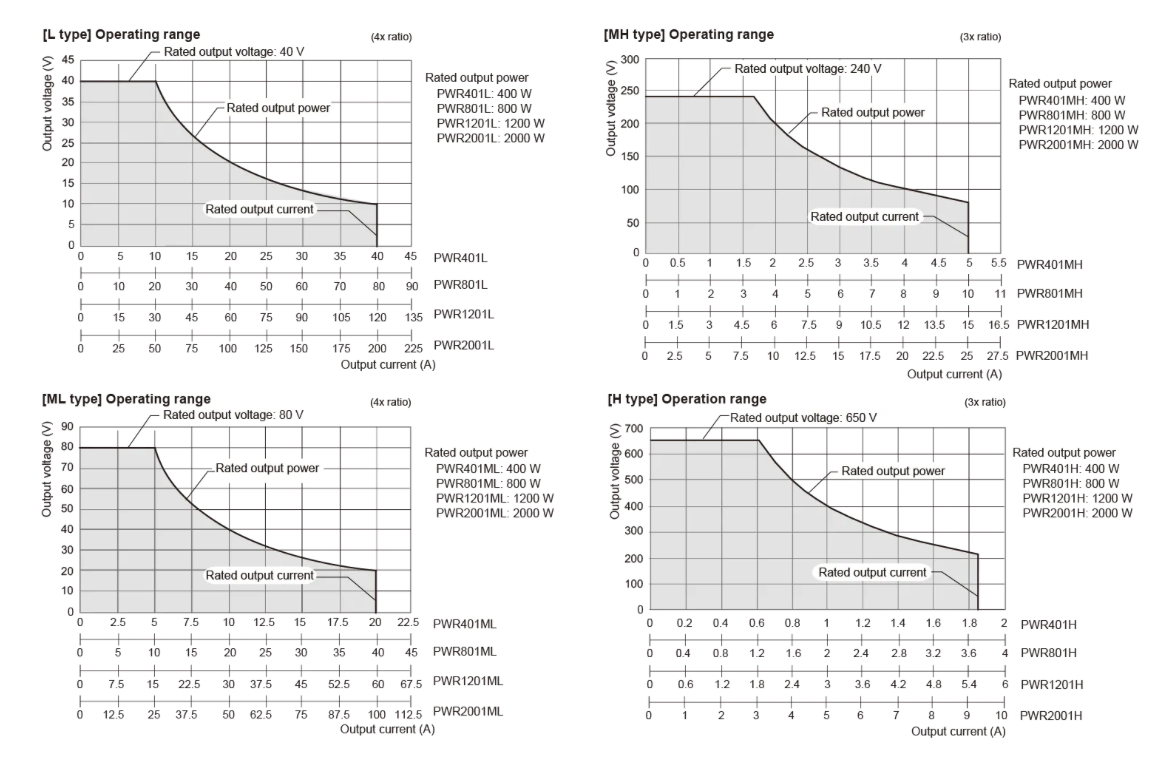

The power supply features a wide constant-power operating range, allowing multiple voltage and current combinations within a 3:1 to 4:1 operating ratio.
For example, the PWR1201ML (1200 W) delivers full rated power across a broad operating range, providing continuous operation from 80 V / 15 A up to 20 V / 60 A without compromising performance.
