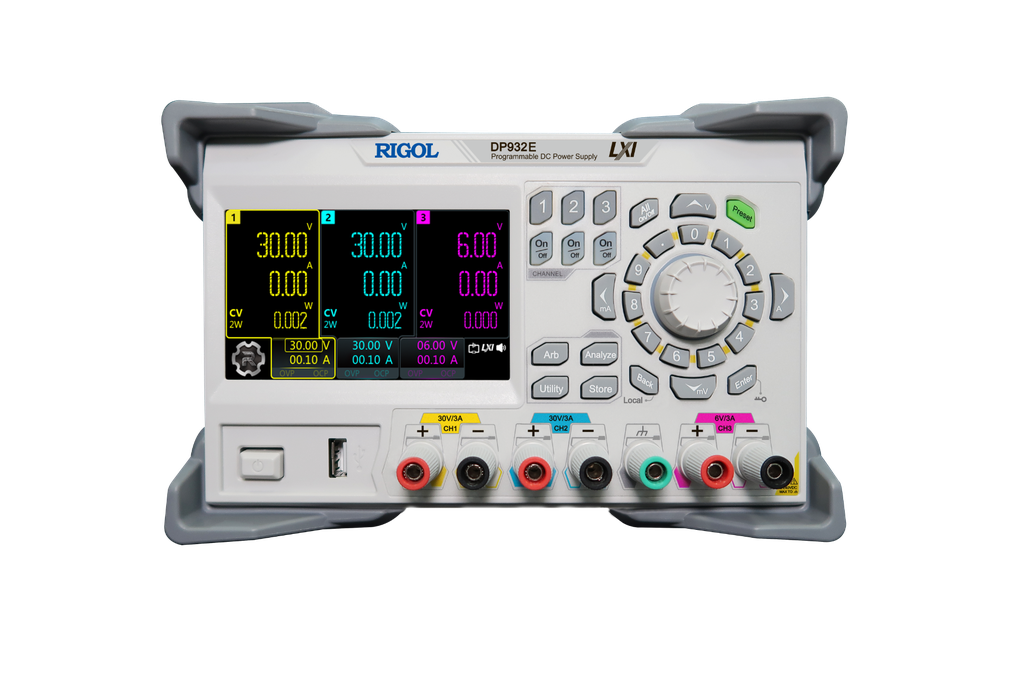

RIGOL DP932E
DC Power Supply 3CH, 2CH 30V/3A, 6V/3A
SKU DP932E
- Authorized importer and distributor, manufacturer warranty
- Technical advice before and after purchase
- New unit in the manufacturer’s original packaging
The latest DP900 series, in addition to low ripple and high accuracy, also has many new functions such as one-key series-parallel, full-channel isolation, etc. to meet new needs of various fields. Provide maximum security, three-way classic, totally new start.
- 3 electrically isolated independent channels with a maximum total power of up to 210 W
- Voltage / Current CH1: 0 - +30 V / 0 - 3 A
- Voltage / Current CH2: 0 - +30 V / 0 - 3 A
- Voltage / Current CH3: 0 - +6 V / 0 - 3 A
- 4.3-inch LCD color touch screen
- Front-panel safety sockets available on some models
- Internal series/parallel connections for CH1 and CH2
- Excellent programming/readback accuracy
- Transient response time <50 μs
- Low output ripple and noise <350 μVrms/2 mVpp
- Command processing time <10 ms
- Three rack-units (3U), 1/2-rack form factor
- PC control
- Timing output, data logging and analysis
- A maximum of 512 arbitrary points with dwell time down to 100 ms; various built-in basic waveforms
- Over voltage, over current, and over temperature protection
- Various interfaces available: USB, LAN, and Digital I/O
Downloads
Need another document? Full specifications, declaration of conformity or user manual: ask us
