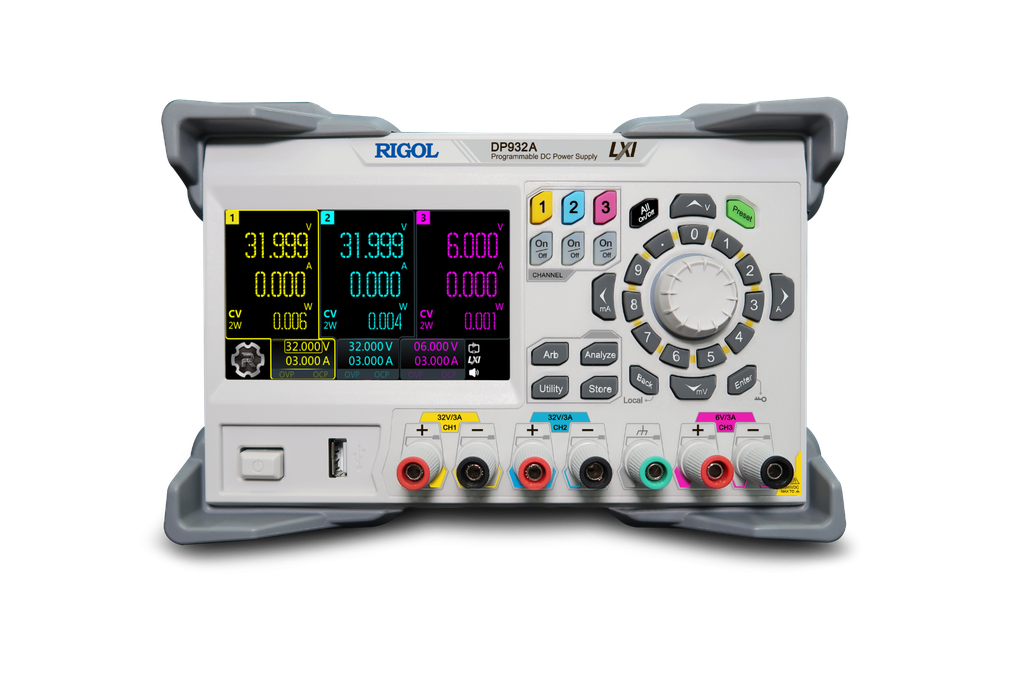

DP932A

https://erp.wise-t.co.il/web/image/product.template/21857/image_1920?unique=eec0337

DC Power Supply, 3CH, 2CH 32V/3A, 6V/3A

SKU DP932A

DP932A

₪ 2,384.00 +VAT 2384.0 ILS ₪ 2,384.00

Not Available For Sale

₪ 2,384.00 incl. VAT

Available on back-order

This combination does not exist.

Download datasheet



Share



The latest 900 series of DP products, in addition to the advantages of low ripple and high accuracy, also adds a variety of new functions such as one-key series-parallel, full-channel isolation, etc. to meet the needs of various application fields. It also includes a new model for education. Providing maximum security, three-way classic, totally new start.

3 electrically isolated independent channels with a maximum total power of up to 210 W
  • Voltage / Current CH1: 0 - +32 V / 0 - 3 A
  • Voltage / Current CH2: 0 - +32 V / 0 - 3 A
  • Voltage / Current CH3: 0 - +6 V / 0 - 3 A
  • 4.3-inch LCD color touch screen
  • Front-panel safety sockets available on some models
  • Internal series/parallel connections for CH1 and CH2
  • Excellent programming/readback accuracy
  • Transient response time <50 μs
  • Low output ripple and noise <350 μVrms/2 mVpp
  • Command processing time <10 ms
  • Three rack-units (3U), 1/2-rack form factor
  • PC control
  • Timing output, data logging and analysis
  • A maximum of 512 arbitrary points with dwell time down to 100 ms; various built-in basic waveforms
  • Over voltage, over current, and over temperature protection
  • Various interfaces available: USB, LAN, and Digital I/O
0

Downloads

Need another document? Full specifications, declaration of conformity or user manual: ask us
