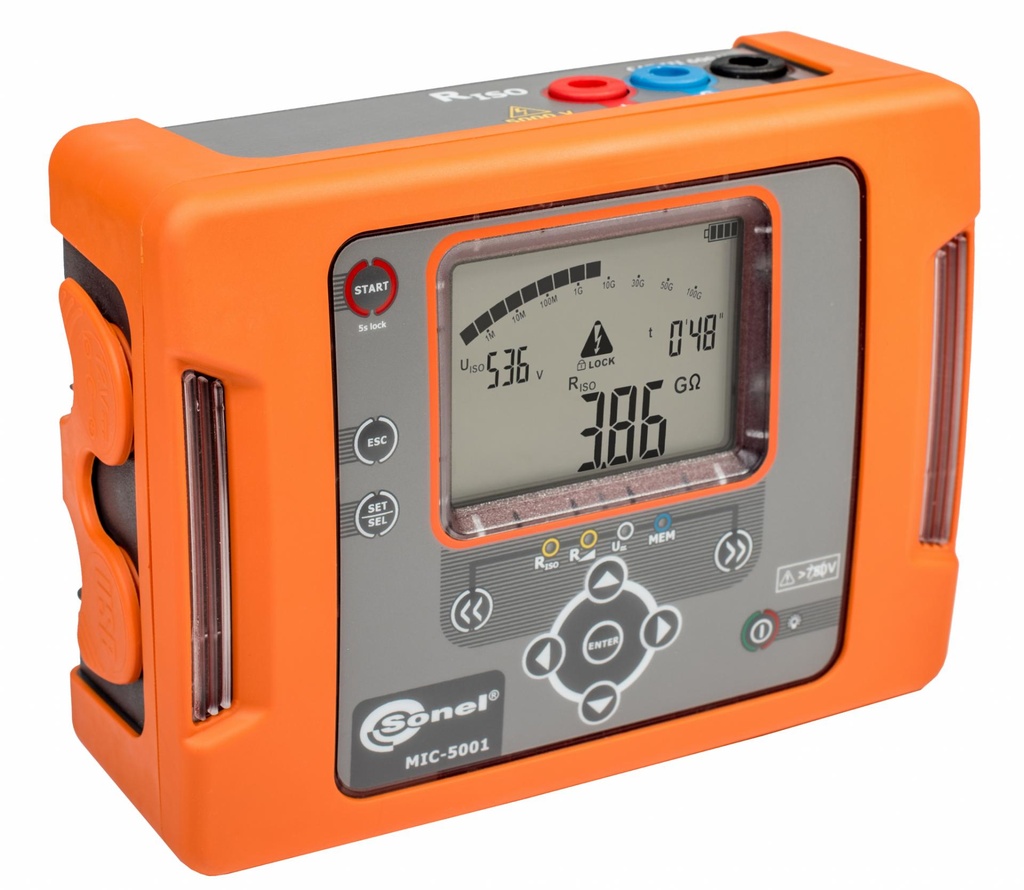

MIC-5001

The Sonel MIC-5001 functional insulation resistance meter is a handy tool for measuring insulation resistance up to 5 TΩ. It is used in a wide range of applications, including industry, railway industry, and housebuilding industry. The device combines many advantages – it has an ergonomic shape and a robust casing with a high level of protection; low battery power consumption; and it is possible to recharge the batteries even during measurements.

measurement voltage selected within the range of 50…500 V with steps of 50 V and from 500 to 5000 V

with steps of 100 V

• continuous reading of measured insulation resistance or leakage current

• automatic discharge of the measured object’s capacitance upon completion of insulation resistance measurement

• sound signalling of five-second time intervals, facilitating capture of time characteristics

• timing of measurement time T1, T2 and T3

for measurement of dielectric absorption ratio (DAR) and polarization index (PI)

• reading of actual measurement voltage during measurement

• protection against measurement of live objects

• two- or three-lead method of insulation resistance measurement

• insulation resistance measurement according to the RampTest method and breakdown voltage measurement

with ramping rate up to ~1 kV/s

• measurement of direct and alternating voltages within the range of 0…750 V

• 990-cell memory (11,880 entries), data transmission to PC via USB cable

• power supplied by accumulator

• instruments meet the requirements laid down by standard EN 61557

• the meter can be powered and charged from an external power adapter or from a car lighter socket
