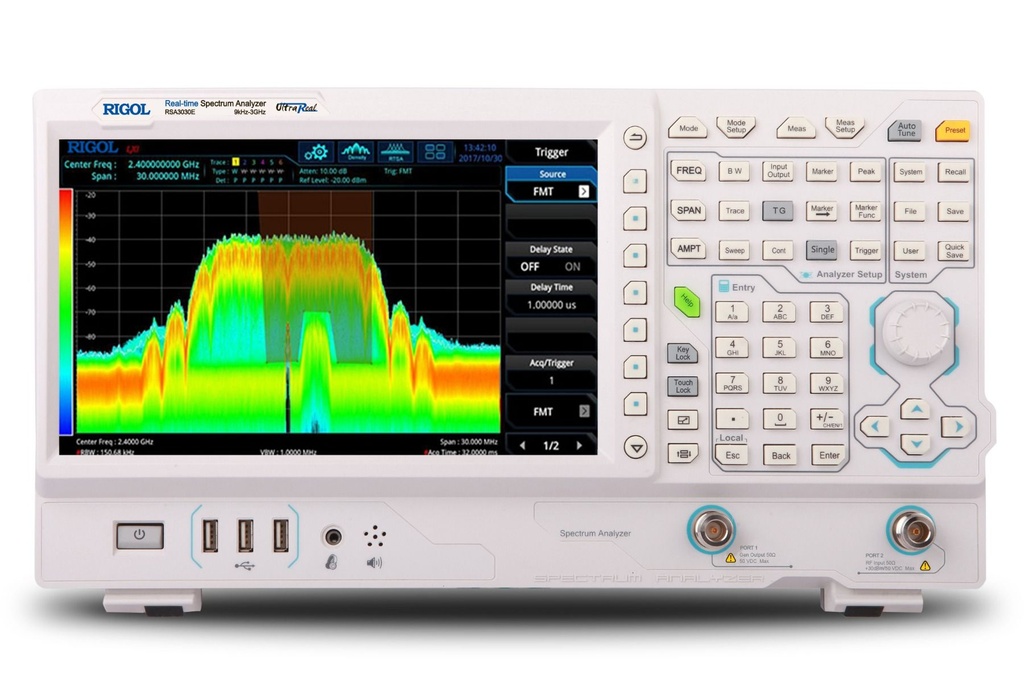

Rigol Spectrum Analyzer RSA3030E

The Rigol RSA3000E series is a compact and light weight spectrum analyzer series that combines premium performance standard spectrum analysis capabilities with a Real-Time Spectrum Analyzer. The combination allows engineers integrating WiFi, Bluetooth and other modern RF technologies to never miss any signal that is longer than 7.45 µs in duration. Frequency hopping signals, channel conflict and spectrum interference are just some of the challenges engineers face when dealing with modern RF systems. The RSA3000E combines industry leading real-time performance (7.45µs 100% POI), rich data displays and advanced triggering options allowing the user to quickly capture, identify and analyze these complex events. The RSA3000E series spectrum analyzers redefine the product category of general purpose spectrum analyzer by adding real-time spectrum trigger and analysis capabilities. The RSA3000E family features a 10.1" touchscreen display, compact design, and easy-to-use interface and operations. The embedded system designer can cross trigger and analyze bus signals like IC2, SPI with RF signals. The RSA3000E is a general-purpose spectrum analyzer with a 1ms full-span sweep and a RBW settable down to 10 Hz. It has an EMI filter and detector such as 9KHz, 120kHz, Quasi-Peak as standard. Optional Pre-Amplifier, High Stability Clock, Advanced Measurement Kit and EMI Precompliance Test Software can be added to extend its capabilities.

• 9 kHz to 3 or 4.5 GHz Frequency Range
• 10.1” Capacitive touchscreen display
• Displayed Average Noise Level as low as -161 dBm with opt. PreAmplifier
• Real-Time Analysis Bandwidth of 10 MHz standard (40 MHz option)
• Frequency-Mask-Trigger, IF-Power-Level-Trigger and external Trigger
• 7 Real-Time visualization modes
• 100 % POI as low as 7. 45 µs
• 10 Hz Minimum Resolution Bandwidth (RBW) (1 Hz option)
• 1 ms full span sweep speed
• EMI RBW and Detector standard (200 Hz, 9 kHz, 120 kHz, 1 MHz)
• Tracking Generator and VSWR measurements available
