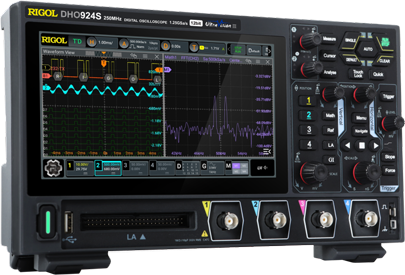

DHO924S

compact design, this oscilloscope boasts superior performance, offering features such as a capture rate of up to 1,000,000 wfms/s (in UltraAcquire Mode), 50 Mpts memory depth, 12 bits resolution, and minimal noise.

The DHO900 series stands out by supporting 16 digital channels, enabling comprehensive analysis of both analog and digital signals. This makes it ideal for embedded design and various testing scenarios. Priced affordably, comparable to entry-level instruments, it provides access to auto serial and parallel bus analysis, bode plot analysis, and other functions essential for meeting testing requirements in R&D, education, and scientific research fields.

We believe the DHO900 series is a valuable addition to your toolkit, offering exceptional performance without compromising your budget. If you have any questions or would like further information, please don’t hesitate to reach out.

• Ultra-low noise floor, purer signal, never miss the small signals
• Up to 12 bits resolution for all the models of this series
• Max. analog bandwidth of 250 MHz, 4 analog channels
• 16 digital channels (std.), logic probe required to be purchased if needed
• Max. real-time sample rate of 1.25 GSa/s
• Max. memory depth of 50 Mpts
• Vertical sensitivity range: 200 μV/div to 10 V/div
• Max. capture rate of 1,000,000 wfms/s (in UltraAcquire mode)
• Digital phosphor display with real-time 256-level intensity grading
• Integrates the AFG function, bode plot analysis, histogram, digital signal analysis, and etc
• Waveform search and navigation function allows you to debug the signal anomalies faster
• 7″ (1024×600) capacitive multi-touch screen
• Brand new Flex Knob brings user-friendly experience
• USB Device & Host, LAN, and HDMI interfaces (std.) for all the models of this series
• Novel and delicate industrial design, easy to operate
• Unique online upgrade
