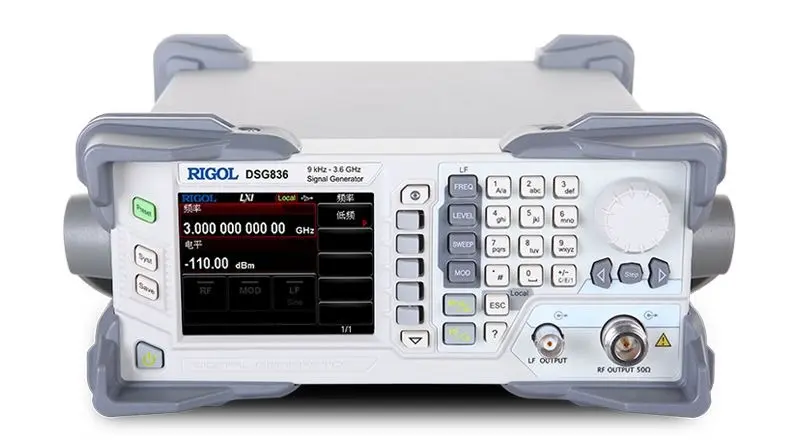

Rigol DSG836

The DSG800A is a compact, high-performance frequency source with full frequency and power scanning capabilities. It includes AM/FM/øM analog modulation, powerful pulse modulation and IQ modulation. The DSG800A is an excellent choice for educational laboratories, industrial production lines, development and research applications. The DSG836 RF signal generator offers a wide range of standard AM, FM and ØM analog modulation frequencies with a maximum frequency of 3.6 GHz.

• Up to 3.6 GHz frequency
• The typical value of amplitude precision is not greater than 0.5 dB
• -110 dBm to +20 dBm output power
• High signal purity; the typical value of phase noise is lower than -112dBc/Hz@20kHz
• Provide 2 ppm internal clock (standard) as well as an optional 5 ppb highly stable clock
• Provide AM/FM/ØM analog modulation functions (standard)
• Provide optional pulse modulation with up to 70 dB on/off ratio; it also provides optional pulse train generator
• All the modulation functions support both internal and external modulation modes
• It is designed with a height of 2U which saves the rack space; it also provides the rack mount kit
• Provide USB/LAN remote control interfaces (standard) and standard SCPIcommand set
• Provide the system flatness calibration (cable, attenuator, amplifier and etc.) function
