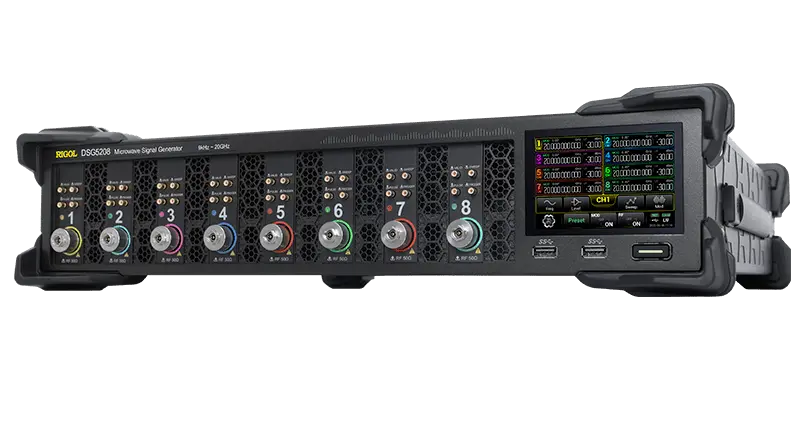

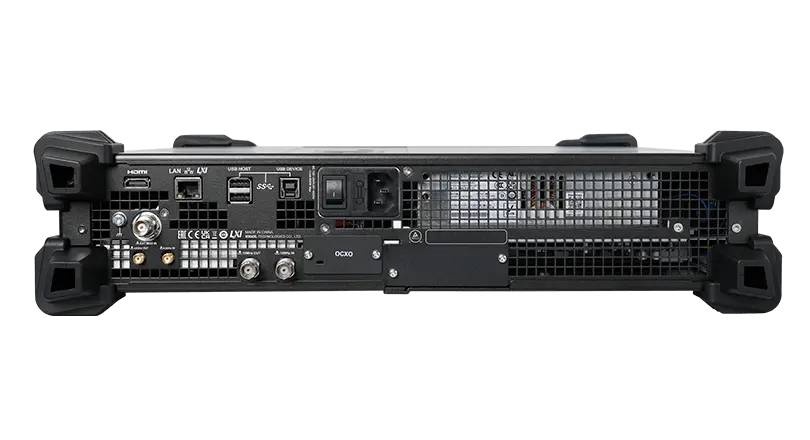

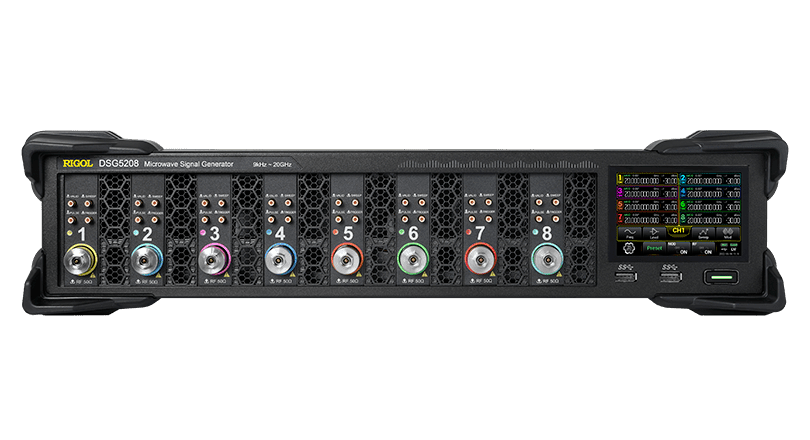

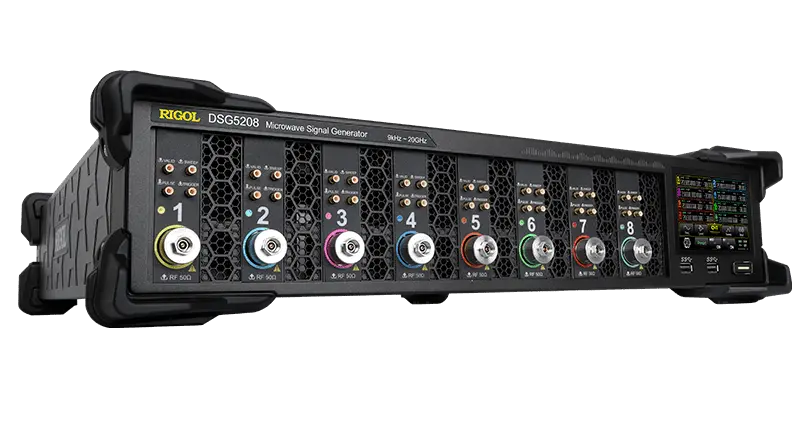

Rigol DSG5000
8-CH RF Signal Generator, 9kHz to 20GHz
Price depends on configuration
Available in several configurations and accessory sets. The quote includes price, lead time and a configuration recommended for your application.
Download datasheet- Authorized importer and distributor, manufacturer warranty
- Technical advice before and after purchase
- New unit in the manufacturer’s original packaging
The DSG5000 series microwave signal generator has a frequency range of 9kHz to 12GHz or 9KHz to 20GHz and supports 2-8 independent channel outputs. It features stable phase coherence, excellent low phase noise and good spurious and harmonic suppression ability--all of which are essential for testing complex systems such as superconducting quantum computing, radar signal generation, MIMO and EMS.
- Multi-channel with up to 8 channels, Support Multi-device rack mount.
- Channel-to-Channel phase stability <1°@ 10GHz, resolution of phase offset setting adjustable in 0.01°
- Fast switching speed 3 ms.
- Output max. available power up to 25 dBm.
- Low phase noise below -133 dBc/Hz@1 GHz, 10 KHz offset.
Downloads
Need another document? Full specifications, declaration of conformity or user manual: ask us
