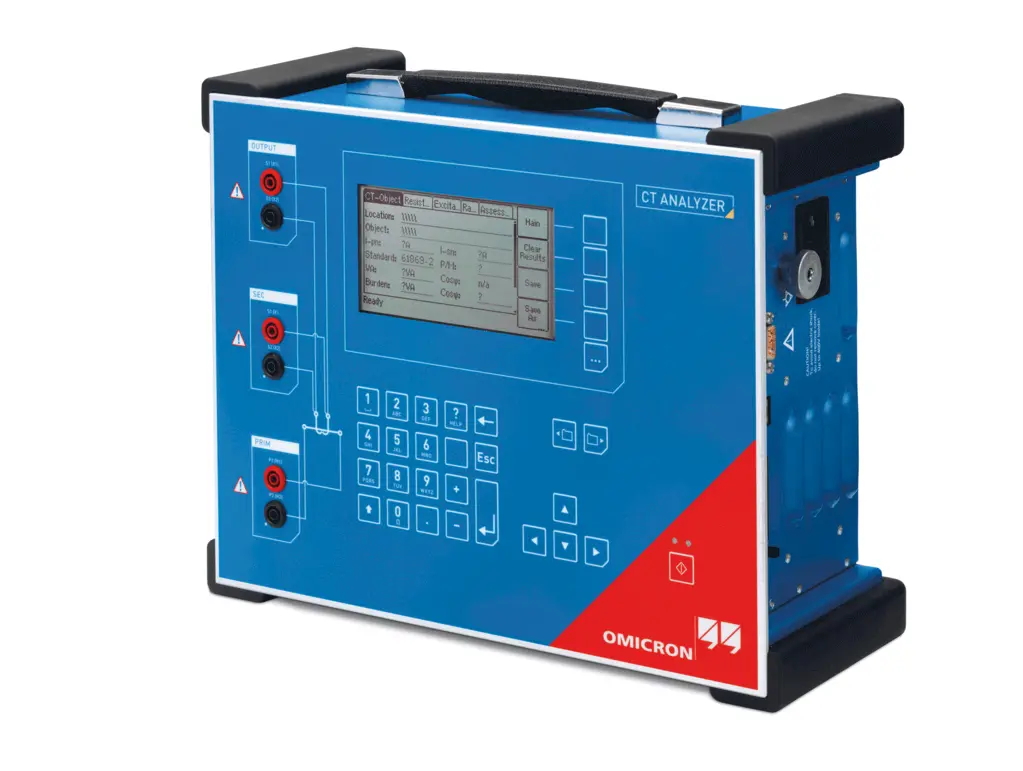

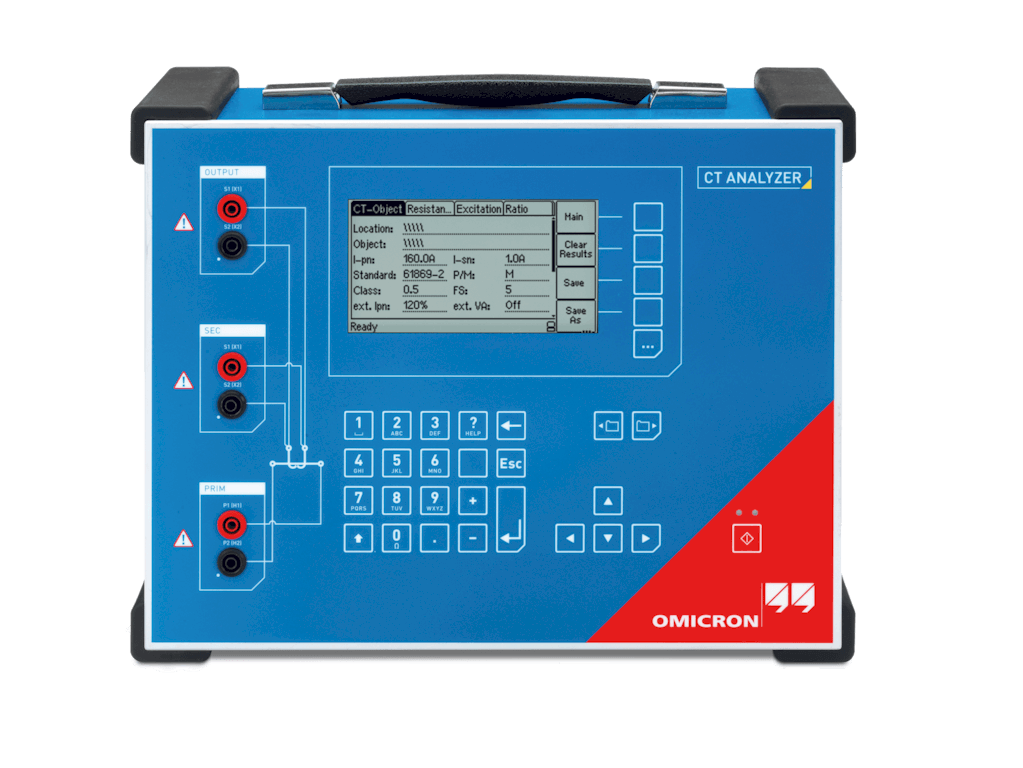

OMICRON CT Analyzer Current transformer testing, calibration and assessment

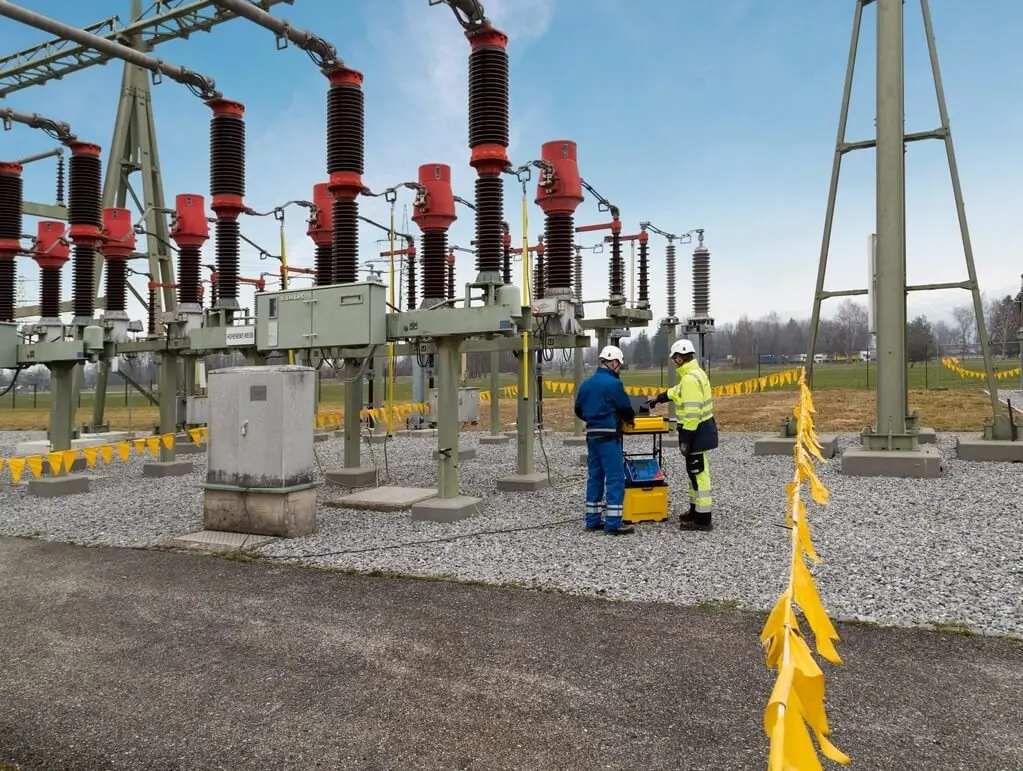

Very small and lightweight, easy to transport for on-site testing

1 / 3 Videos

Price depends on configuration

Available in several configurations and accessory sets. The quote includes price, lead time and a configuration recommended for your application.

Request a quote

Talk to an engineer WhatsApp

This combination does not exist.

OMICRON electronics GmbH

Analyze your current transformer (CT) with the push of a button

How CT Analyzer works

Injects low test signals into secondary side of the CT
Determines the CT‘s equivalent circuit parameters
Identifies all relevant CT performance parameters
Displays all relevant parameters of the CT and its accuracy at different currents and burdens
Evaluates the CT according to the selected standard
Determines unknown CT nameplate parameters
Demagnetizes the CT after the test.

Key features

Highest measurement accuracy: 0.02 % / 1 min when calibrating on site
Very small and lightweight (< 8 kg / 17.4 lbs), easy to transport for on-site testing
Automatic evaluation according to IEC, IEEE and to customized or local/national standards
Short commissioning times (duration of the automatic test < 1min)
Excellent workplace safety - Tests run at max. 120 V
Integration into testing routines using Remote Interface Control
