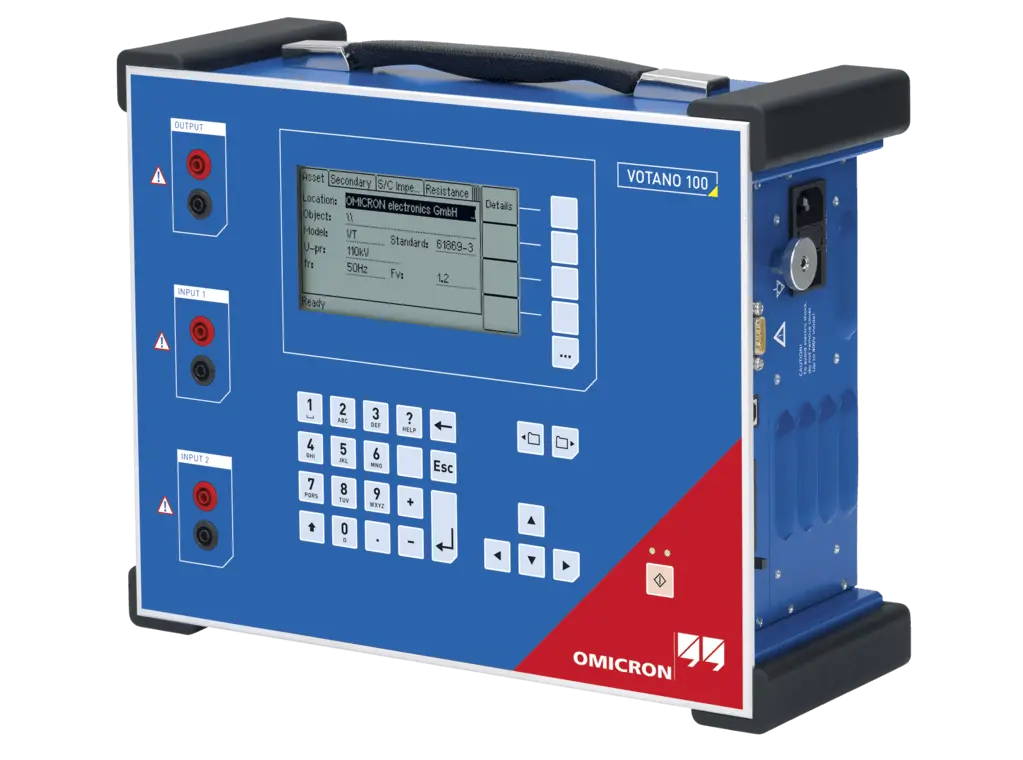

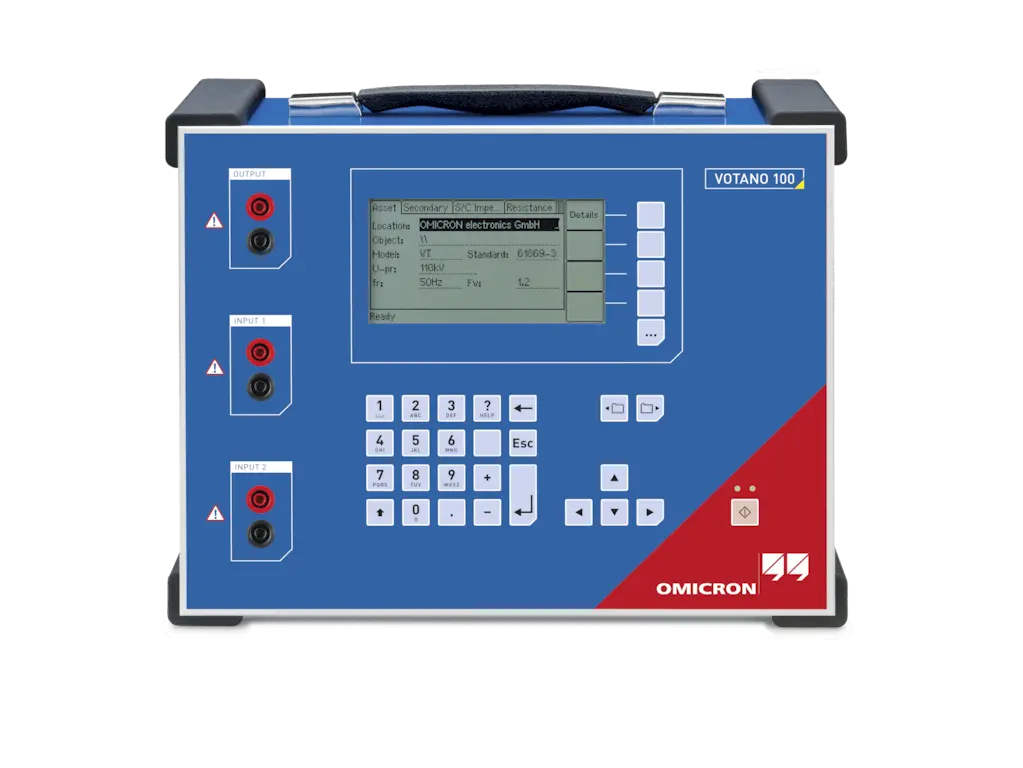

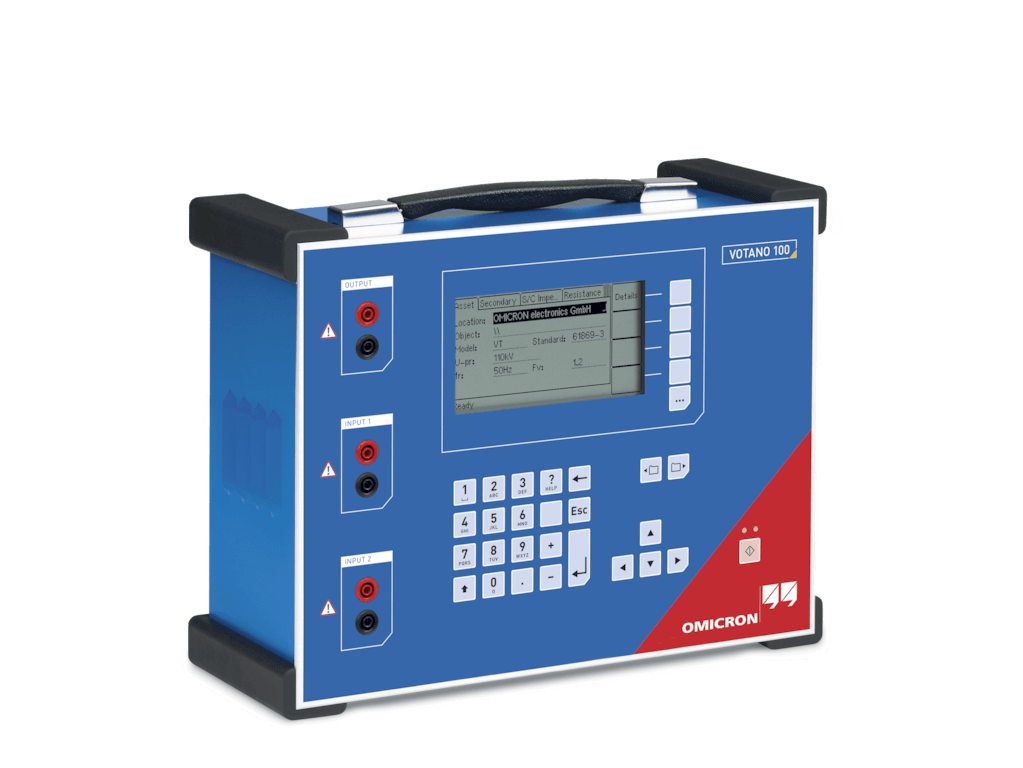

OMICRON VOTANO 100 Voltage transformer testing, calibration and assessment
Fast short test duration

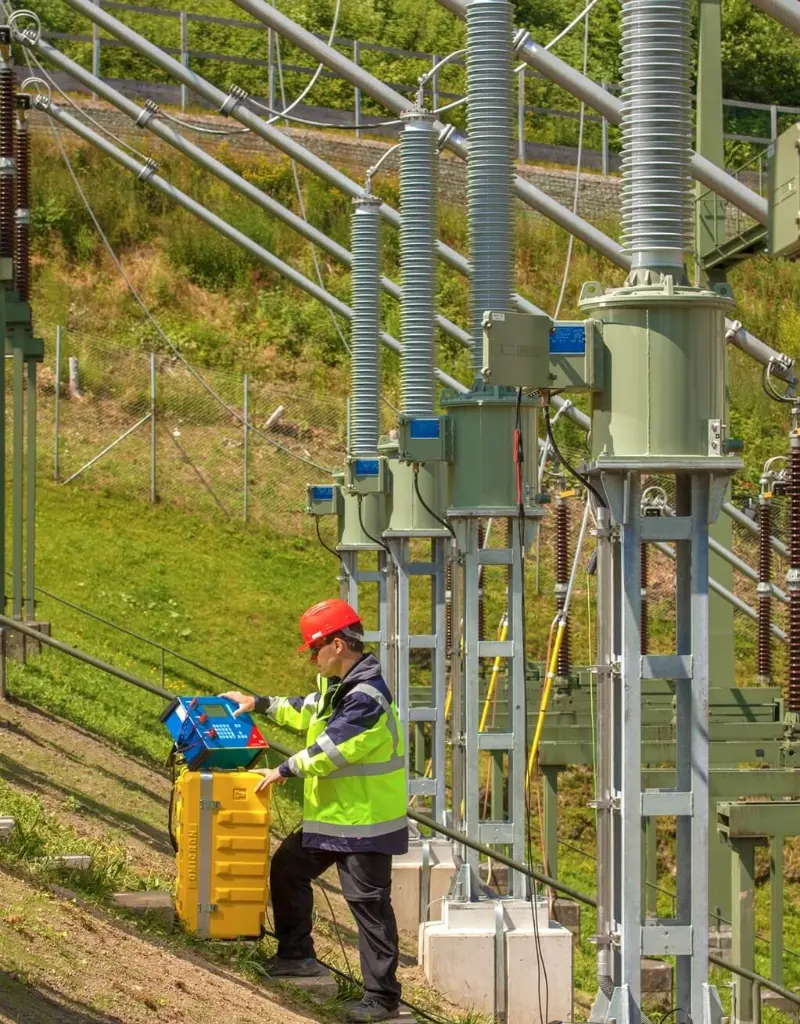

VOTANO 100 is the first portable device (33 pounds) that allows you to test inductive voltage transformers (VTs) and capacitive voltage transformers (CVTs) for both protection and metering purposes. It performs quick tests of all kinds of voltage transformers in power system grids. As a manufacturer or testing lab, you can use VOTANO 100 in your production facilities and test/development labs. VOTANO 100 comes with the separate voltage booster VBO2, which provides the necessary test voltage during ratio measurements. Its integrated switchbox automatically switches between different test sequences.
Key Features:
For voltage transformer testing (VT/CVT):
- Check the electrical performance of VTs and CVTs
- Check the condition of VTs and CVTs
- Basic condition assessment for CVTs
- Tests such as ratio, phase, polarity, capacitive ratio
Additionally, for voltage transformer accuracy verification and calibration (VT/CVT):
- Verify accuracy class according to IEC, IEEE
- Test of VTs/CVTs up to rated voltages and voltage factors up to 1.9
- Class assessment
- Accuracy classes up to 0.1 for VTs and 0.2 for CVTs
