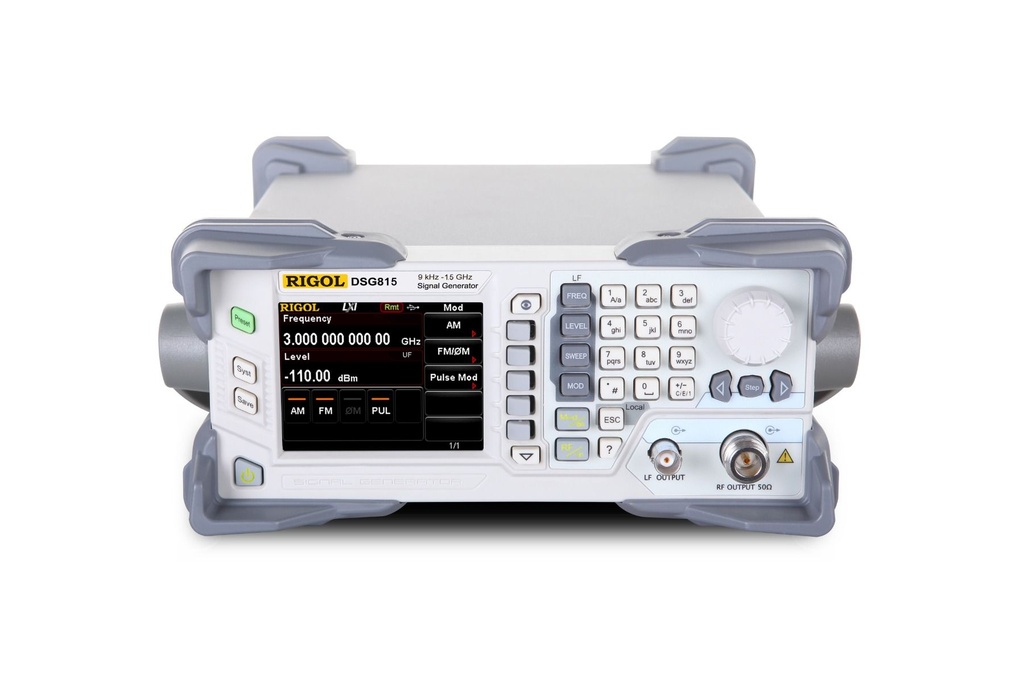

DSG815

RF Signal Generator 9kHz-1.5GHz,-100dBc/Hz Phase Noise,+13dBm to -110dBm,

SKU DSG815

₪ 7,760.00 incl. VAT

Available on back-order

This combination does not exist.

Talk to an engineer WhatsApp

The DSG800A provides outstanding performance in an economical RF signal source that offers full frequency and power scanning capabilities, as well as AM/FM/ØM analog modulation, powerful pulse modulation and IQ modulation. Compared to similar products, it has the smallest footprint, light weight and superior portability--making it an excellent choice for educational laboratories, industrial production lines and development and research applications. The DSG815 RF signal generator offers AM, FM, and ØM analog modulation with a maximum frequency of 1.5 GHz.

Up to 1.5 GHz frequency
The typical value of amplitude precision is not greater than 0.5 dB
-110 dBm to +20 dBm output power
High signal purity; the typical value of phase noise is lower than -112dBc/Hz@20kHz
Provide 2 ppm internal clock (standard) as well as an optional 5 ppb highly stable clock
Provide AM/FM/ØM analog modulation functions (standard)
Provide optional pulse modulation with up to 70 dB on/off ratio; it also provides optional pulse train generator
All the modulation functions support both internal and external modulation modes
It is designed with a height of 2U which saves the rack space; it also provides the rack mount kit
Provide USB/LAN remote control interfaces (standard) and standard SCPIcommand set
Provide the system flatness calibration (cable, attenuator, amplifier and etc.) function
