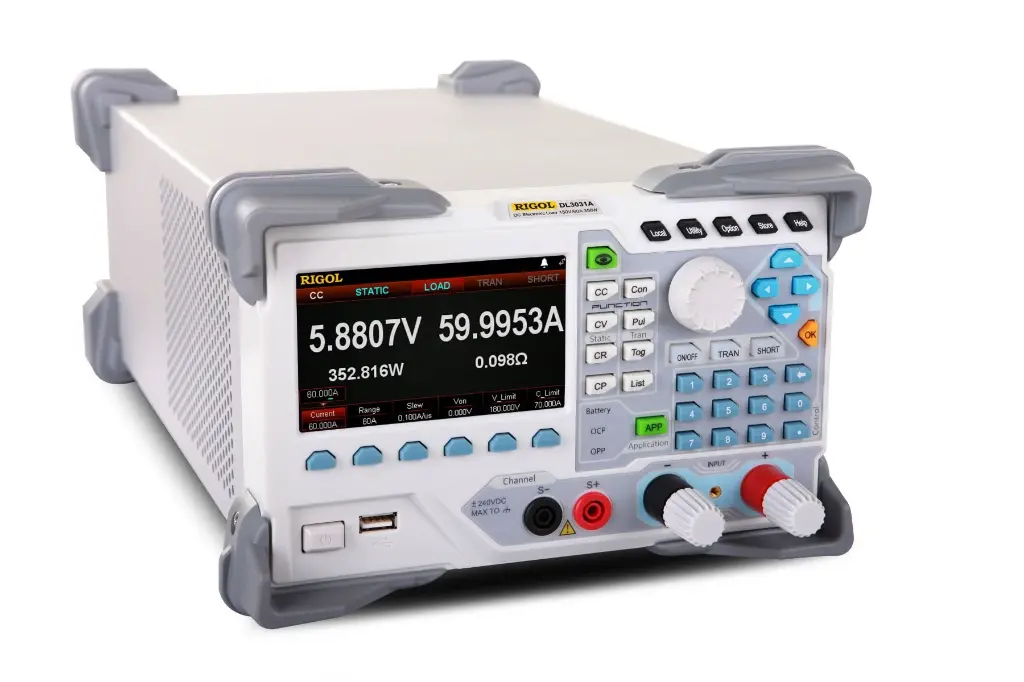

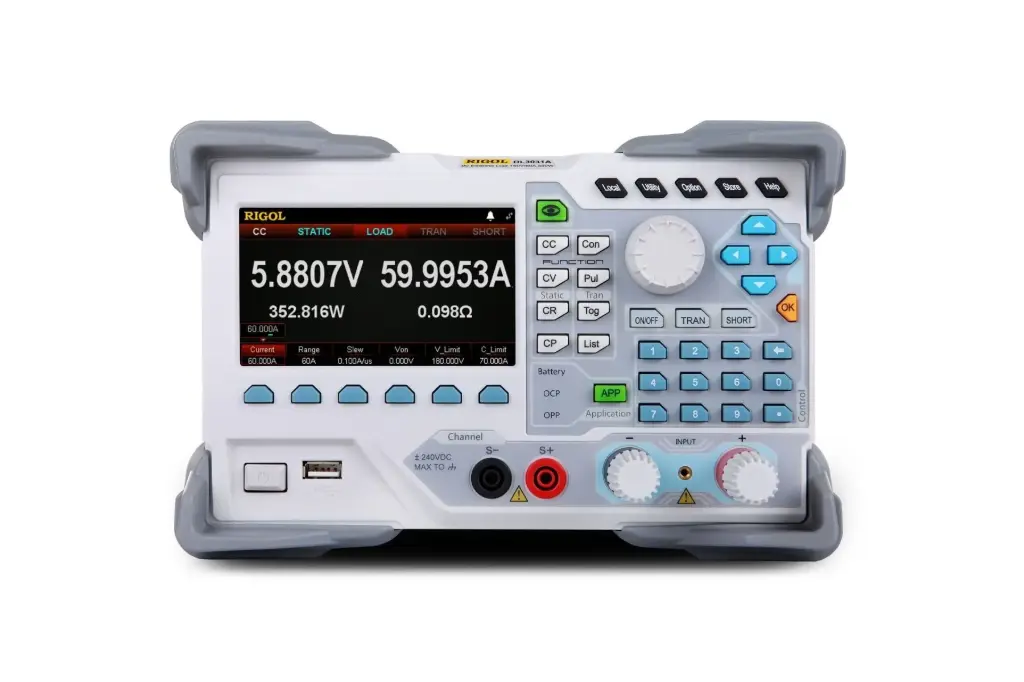

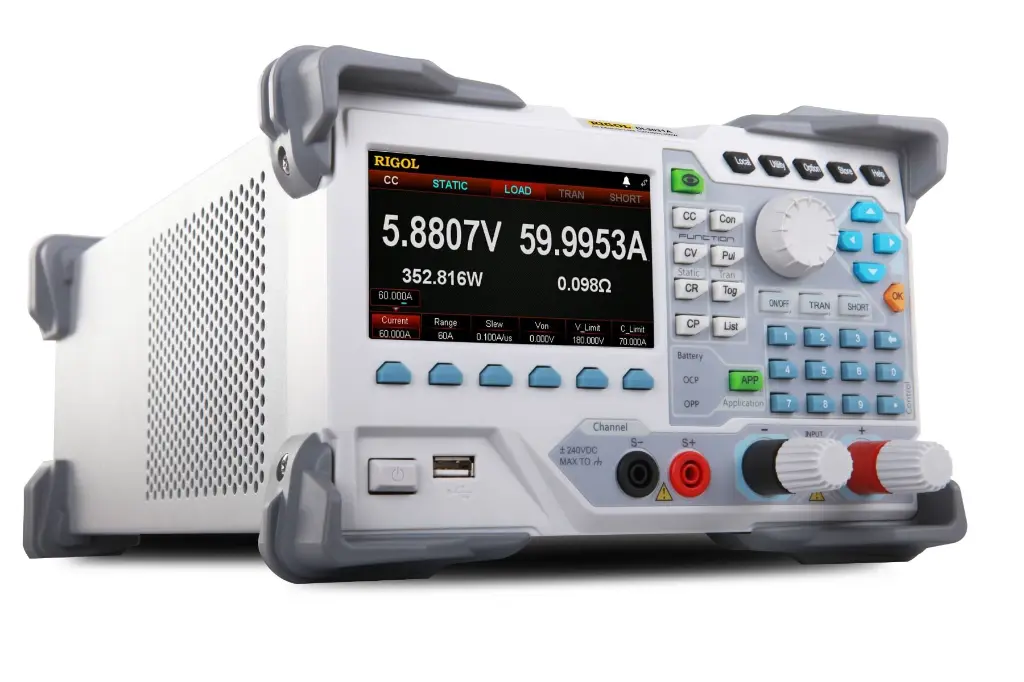

Rigol DL3031A
350W Electronics DC Load, single channel, DC150V/60A, 5A/us
SKU DL3031A
- Authorized importer and distributor, manufacturer warranty
- Technical advice before and after purchase
- New unit in the manufacturer’s original packaging
The DL3000 series is a cost-effective, economical, programmable DC electronic load. The product has a variety of remote communication interfaces that meet diverse needs for design and testing. A wide range of solutions are available in a wide range of industries including automotive electronics and fuel cells.
- DL3031/DL3031A: single channel, DC150V/60A, total power up to 350 W
- Dynamic mode: up to 30 kHz
- Adjustable current rising speed: 0.001 A/μs to 5 A/μs
- Min. readback resolution: 0.1 mV，0.1 mA
- 4.3-inch TFT LCD, capable of displaying multiple parameters and states simultaneously
- Overvoltage/overcurrent/overpower/overtemperature/reverse voltage protection
- 4 static modes: CC, CV, CR, CP
- 3 dynamic modes: continuous, pulsed, toggled
- List function supports editing as many as 512 steps
- Battery test function, OCP test, OPP test, factory test function, etc.
- Short-circuit test function
- Power-off memory function

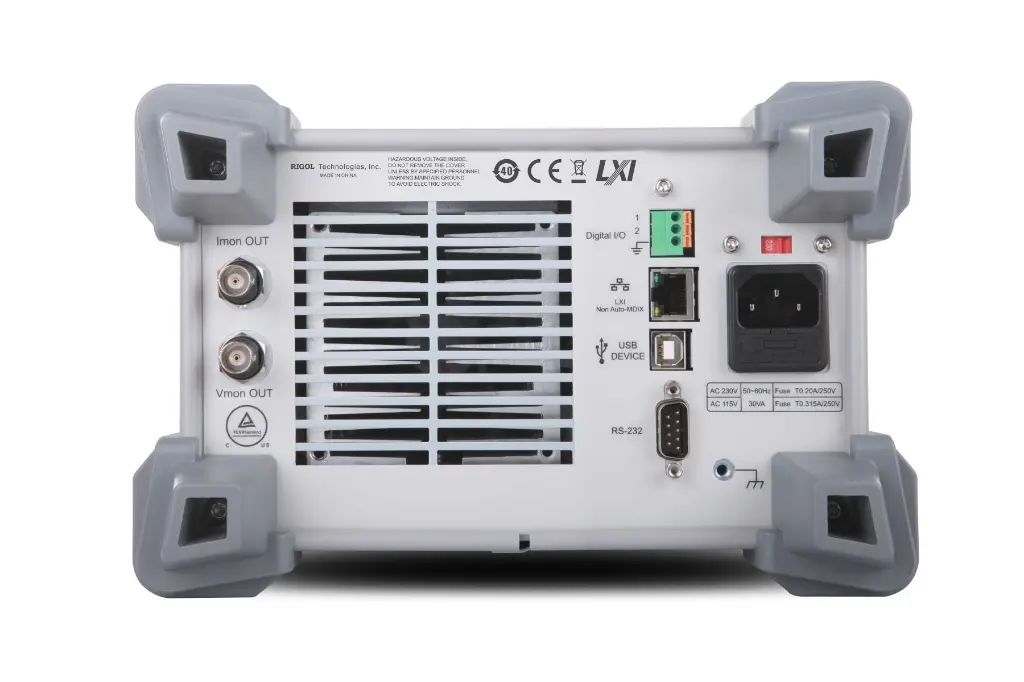

- Built-in RS232/USB/LAN communication interface
- USB-GPIB module (optional)
Downloads
Need another document? Full specifications, declaration of conformity or user manual: ask us
