Product ID: 18679

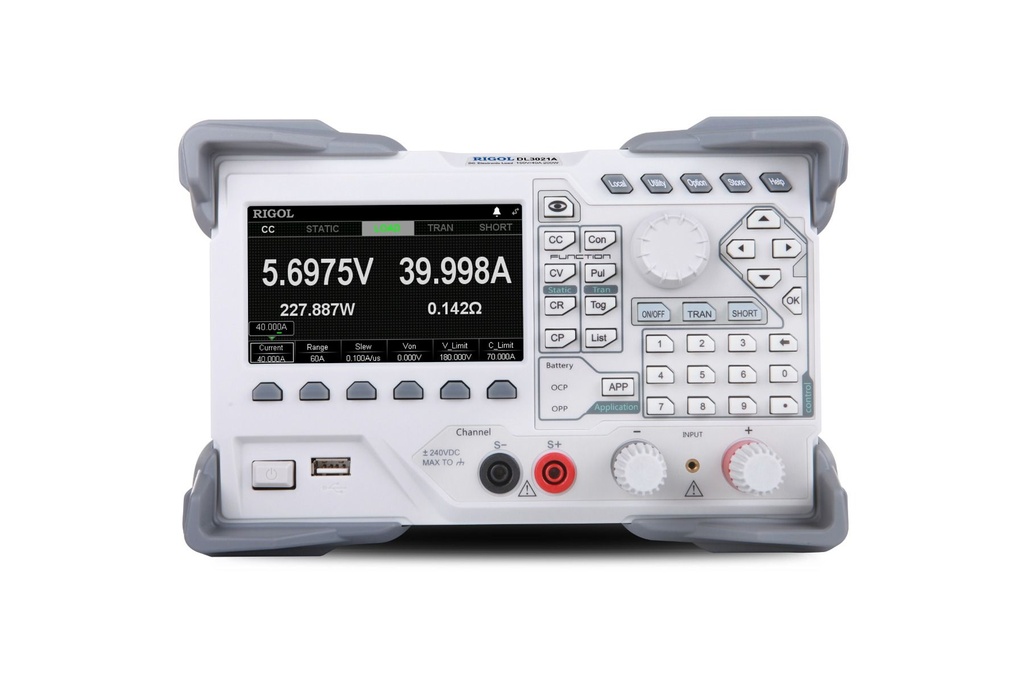

The DL3000 series is a cost-effective and economical programmable DC electronic load with a user friendly interface and excellent performance specifications. It provides a variety of remote communication interfaces to meet diverse testing needs for design and testing in various industries, including automotive electronics and fuel cells.
- DL3021/DL3021A: single channel, DC150V/40A, total power up to 200 W
- Dynamic mode: up to 30 kHz
- Adjustable current rising speed: 0.001 A/μs to 5 A/μs
- Min. readback resolution: 0.1 mV，0.1 mA
- 4.3-inch TFT LCD, capable of displaying multiple parameters and states simultaneously
- Overvoltage/overcurrent/overpower/overtemperature/reverse voltage protection
- 4 static modes: CC, CV, CR, CP
- 3 dynamic modes: continuous, pulsed, toggled
- List function supports editing as many as 512 steps
- Battery test function, OCP test, OPP test, factory test function, etc.
- Short-circuit test function
- Power-off memory function
- Built-in RS232/USB/LAN communication interface
- USB-GPIB module (optional)
