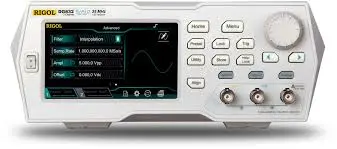

DG832

https://erp.wise-t.co.il/web/image/product.template/21810/image_1920?unique=48417d7

Function Generator 35MHz 2 channel,125MSa/s sample rates,16bit resolution,2Mpt memory depth,7digits/s counter

SKU DG832

DG832
Video

Price on request

Tell us about your application and we'll send a tailored quote, including lead time and an expert recommendation.

Request a quote
Talk to an engineer

This combination does not exist.



Share

The DG800 Series redefines the entry-level waveform generator by bringing advanced capabilities like 16-bit high resolution, an intuitive touch screen, and a quiet fanless design to our most affordable line of generators.
Rigol DG832 Function Generator Characterized with This digital oscilloscope has a sample rate of 35MHz, with 2 independent channels that can be used simultaneously. It has a 16bit resolution and 2Mpt memory depth, with a 7 digits/s counter.

  • Unique SiFi II (Signal Fidelity II) technology: generate the arbitrary waveforms point by point; recover the signal without distortion; sample rate accurate and adjustable; jitter of all the output waveforms (including Sine, Pulse, etc.) as low as 200 ps
  • 2 Mpts memory depth (standard); 8 Mpts memory depth (optional) per channel for arbitrary waveforms
  • Optional dual-channel with the same performance, equivalent to two independent signal sources
  • High frequency stability: ±1 ppm; low phase noise: -105 dBc/Hz
  • Built-in high-order harmonic generator (at most 8-order harmonics) Built-in 7 digits/s, 240 MHz bandwidth full featured frequency counter Up to 160 built-in arbitrary waveforms, covering the common signals in engineering application, medical electronics, auto electronics, math processing, and other various fields
  • Sample rate up to 125 MSa/s, vertical resolution 16 bits
  • Arbitrary waveform sequence editing function available; arbitrary waveforms also can be generated through the PC software
  • Various analog and digital modulation functions: AM, FM, PM, ASK, FSK, PSK, and PWM.
  • Standard waveform combine function, capable of outputting specified waveforms combined with the basic waveforms
  • Standard channel tracking function, when enabled, all the parameters of both channels are updated based on users’ configurations
  • USB Host&Device interface (standard); USB-GPIB function supported
  • 3” TFT color touch screen
  • RS232, PRBS, and Dual-tone outputs supported

Need another document? Full specifications, declaration of conformity or user manual: ask us
