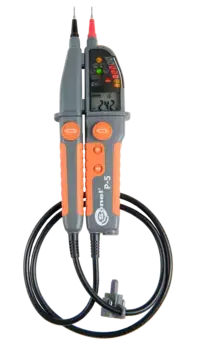

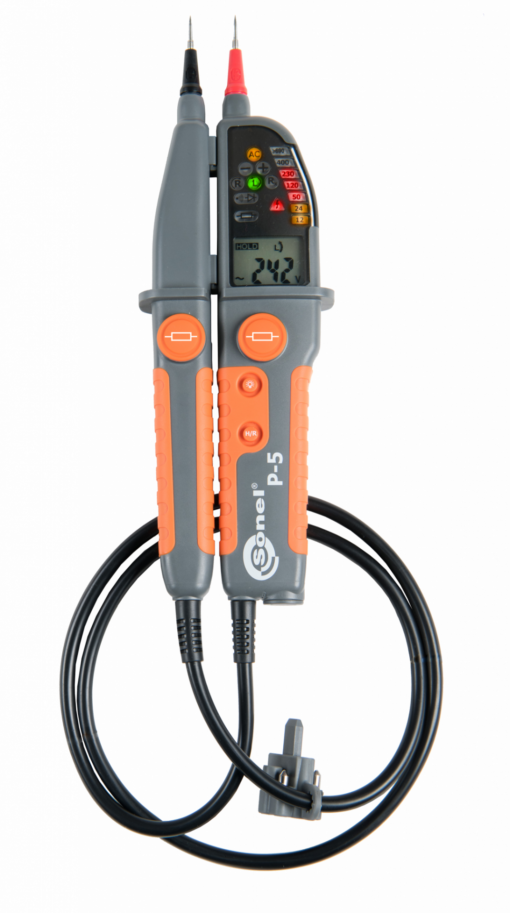

P-5

Main functions and attributes of the P-5 instrument

• automatic voltage test up to 1000 V AC/DC
• optical indication by a LED bar and additional LCD display
• sound indication when dangerous voltage levels of 50 V AC and 120 V DC are exceeded
• RCD trip test with switchable load
• automatic continuity test upon connection to the object
• 2-pole test of phase rotation direction
• single-pole indication of 100 V presence
• resistance measurement up to 1999 Ω
• HOLD function for freezing the measurement results
• robust, two-component housing protecting from mechanical damages and impacts
• integrated torch light and backlit display for tests in poorly lit areas
• IP65 ingress protection guarantees protection against dust and water
• safety provided by measuring class compliant with CAT IV 600 V and CAT III 1000 V standards
