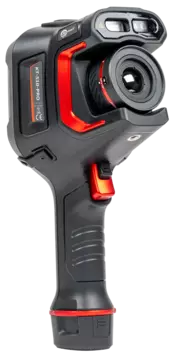

The Sonel KT-510-PRO is a professional thermal imaging camera combining an advanced detector, high thermal sensitivity, a wide temperature measurement range, and high-quality optics to deliver detailed thermal images and accurate measurements.
Designed for professional field applications, the camera combines ease of operation with advanced analysis capabilities, thermal and visible-light imaging, a wide range of communication interfaces, and comprehensive documentation features.
Innovation and Ease of Use
The KT-510-PRO features a large 4.3-inch touchscreen and advanced data-processing electronics housed in a rugged enclosure. Its ergonomic handle and easily accessible controls ensure comfortable and efficient operation, even during extended periods of fieldwork.
The camera also incorporates a visible-light camera and enables thermal and visible images to be combined using MIF and PiP technologies.
In addition, the camera is equipped with an LED flashlight, laser pointer, and laser rangefinder, assisting users with measurements, identifying inspection points, and creating professional documentation.
Thermal images can be saved directly on the camera, while the built-in reporting module enables users to generate PDF reports directly from the device. The camera can also record thermal video and document additional information, including visible-light images and voice recordings.
The camera supports Sonel ThermoAnalyze 3 software and enables real-time viewing and remote control via a mobile device.
Key Features
High thermal sensitivity: 30 mK
Fast image refresh rate: 50 Hz
Wide temperature measurement range: up to 2000°C
Detector resolution: 256 × 192 pixels
Manual and automatic focusing
5 focusing modes
Super Resolution: 512 × 384 pixels
4.3″ LCD touchscreen
Built-in GPS
Digital compass
Laser pointer
64 GB internal memory
IP54 protection rating
