WHALETEQ Transmittance SpO2 Module

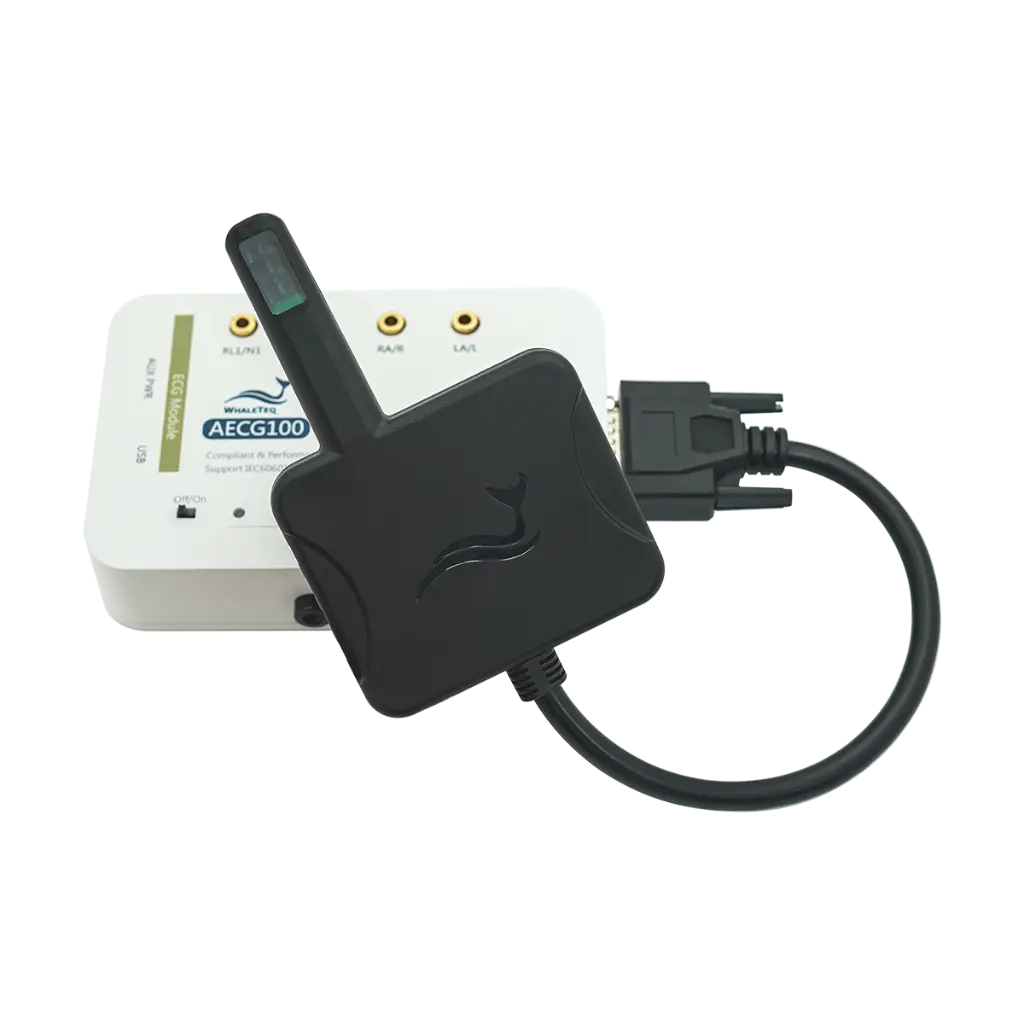

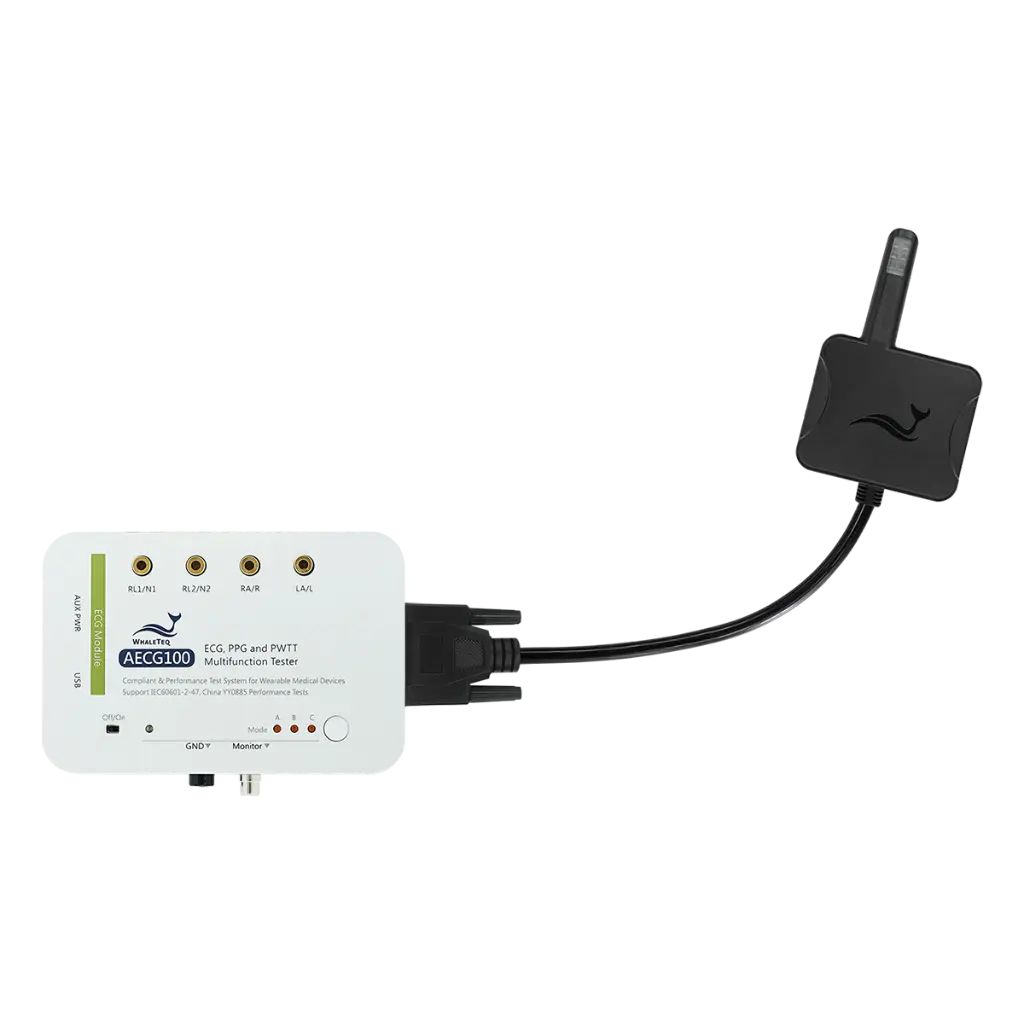

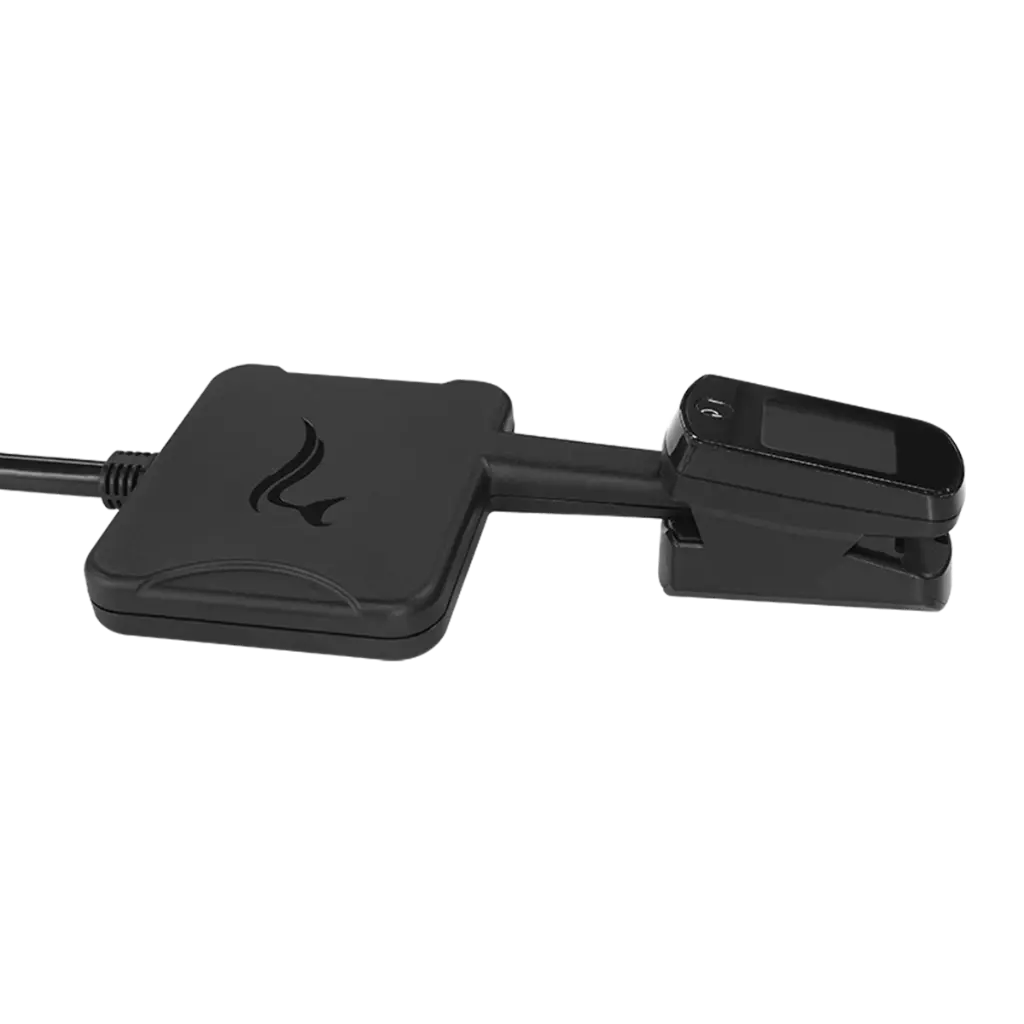

The AECG100 main console and software work with this transmittance SpO2 performance tester to test heart rate and blood oxygen saturation (SpO2). This dual-channel optical module outputs R and IR analog signals and is suitable for the development of transmittance PPG products such as finger clip oximeters and patient monitors.

• Works with the AECG100 main console and software to test heart rate, PPG, PWTT, and SpO₂ functions
• Adjustable SpO₂ parameters, such as AC, DC, and PI values ​​of R/IR, to confirm the accuracy of oximeters
• Exclusive Auto Test SpO₂ Mode － automatically calculates the DUT’s DC value of R/IR and fills in the SpO₂ table to rapidly build the R curve, bringing convenience for testing the consistency of quality on oximeters*
• Built-in 6 transmission rates － simulates 5 finger types varying in color brightness and thickness, and neonatal foot test mode for measuring newborns to optimize algorithms
• Built-in 7 types of noise, 14 types of ambient light signals, and respiratory variation simulation － add-on signals for more authentic testing
• Adjustable PPG waveform parameters (R/IR amplitude, time, and heart rate) in a wide range and precise values for flexible test settings
• Equipped with Auto Sequence function － sorts the parameters of different test items into a designated order for automated testing while eliminating the need to develop automated testing programs
• Raw data playback － plays recorded raw data or customized waveforms for repeated verification to facilitate the development process
• Provides SDK supporting multiplatform for users to flexibly develop automated testing programs

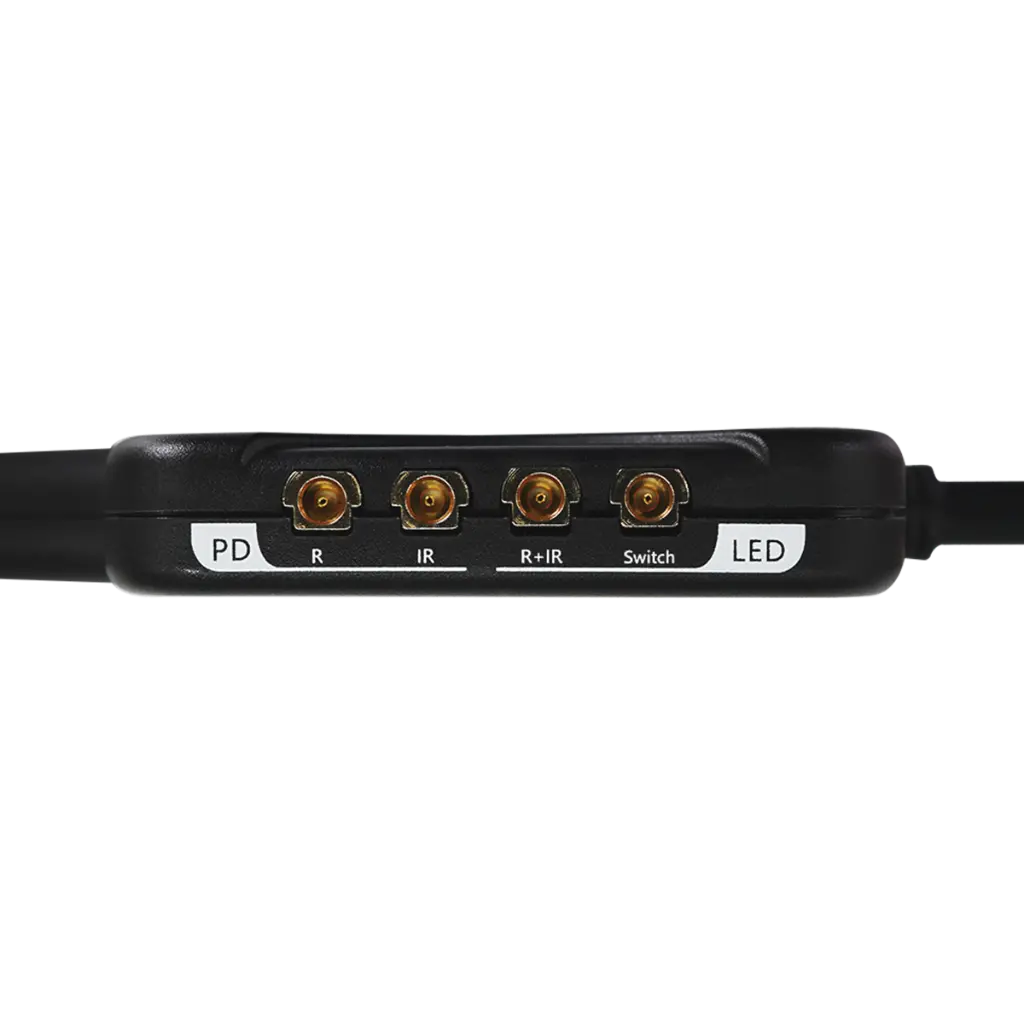

• Equipped with MCX to BNC ports to connect to an oscilloscope － outputs amplified and stable signals for viewing the voltage of AC analog signals of R/IR, optical signals received by the PPG-2TF-660, and the switch status of R/IR LED of oximeter
