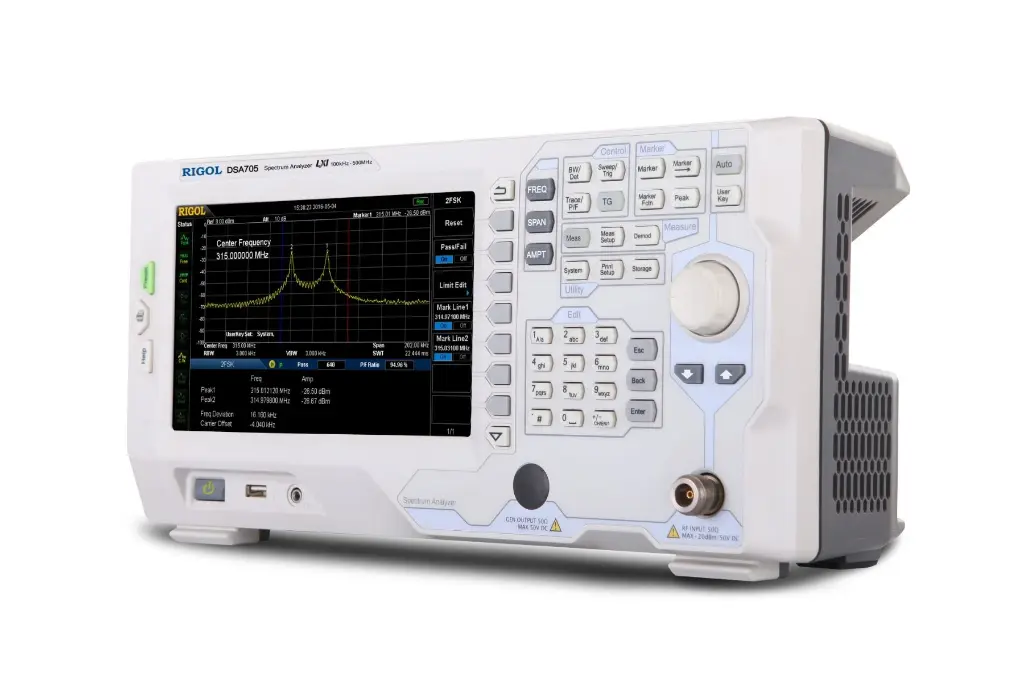

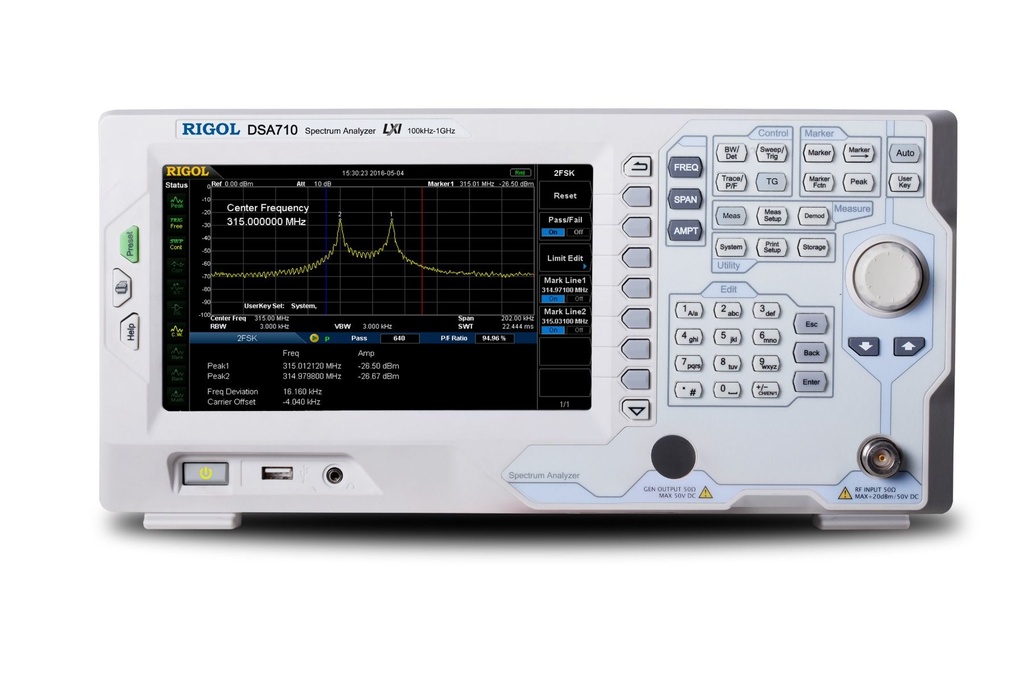

Rigol DSA710

Spectrum Analyzers 100kHz - 1GHz.

1 / 3

₪ 6,501.00 +VAT 6501.0 ILS ₪ 6,501.00

₪ 6,501.00 incl. VAT

Available on back-order

This combination does not exist.

Add to cart

Rigol Technologies

Download datasheet

Authorized importer and distributor, manufacturer warranty
Technical advice before and after purchase
New unit in the manufacturer’s original packaging

DSA700 Series spectrum analyzers are designed to provide entry level analysis for education, IoT, hobby, and radio applications. They come in 500 MHz and 1 GHz models with options for Seamless Signal Capture and EMI. Rigol DSA710 Spectrum analyzer from 100 kHz to 1 GHz

The highest frequency: 1 GHz
Displayed Average Noise Level (DANL): <-130 dBm (Typical)
Phase Noise: <-80 dBc/Hz @ 10 kHz offset (Typical)
Level Measurement Uncertainty: <1.5 dB
Minimum Resolution Bandwidth (RBW): 100 Hz
EMI Filter and Quasi-Peak Detector Kit (Option)
Standard with Preamplifier and AM/FM Demodulation Function
Various measurement functions (option)
8 inche (800×480 pixels) high-definition display with clear, vivid, and easy-to-use graphical interface
Various interfaces such as LAN, USB Host, USB Device and GPIB (option)
Compact Size, Light Weight Design
