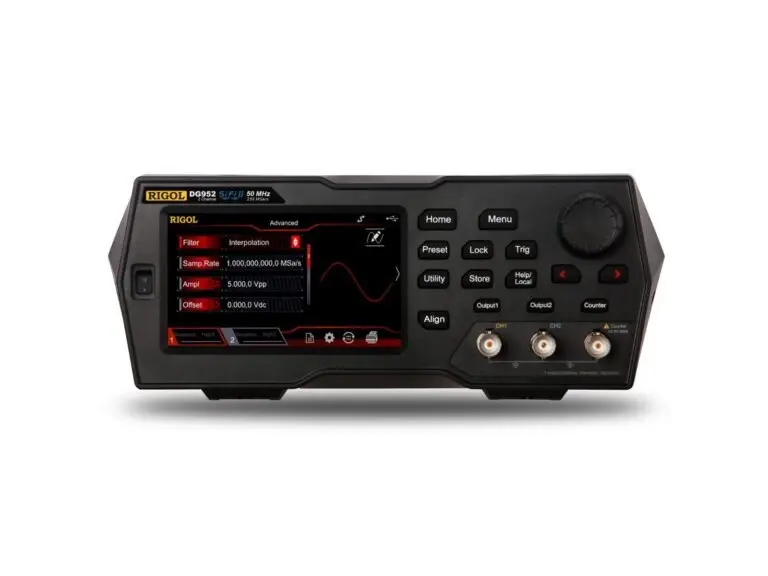

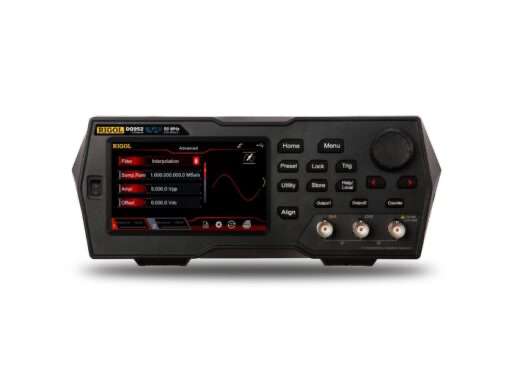

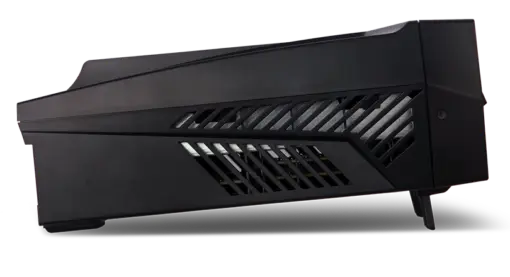

Rigol DG952

The DG900 Series offers frequencies up to 100 MHz, 16-bit resolution, and arbitrary waveforms of up to 16 Mpts. The SiFi II option adds additional filtering capabilities for greater flexibility. Rigol DG952 Characterized with The arbitrary waveform generator has a bandwidth of 50 MHz and can store up to 16 million points.

• Unique SiFi II (Signal Fidelity II) technology: generate the arbitrary waveforms point by point; recover the signal without distortion; sample rate accurate and adjustable; jitter of all the output waveforms (including Sine, Pulse, etc.) as low as 200 ps
• Maximum output frequency (Sine): 50MHz
• 16 Mpts memory depth per channel for arbitrary waveforms
• Standard dual-channel with the same performance, equivalent to two independent signal sources
• High frequency stability: ±1 ppm; low phase noise: -105 dBc/Hz
• Built-in up to 8 orders harmonics generator
• Built-in 7 digits/s, 240 MHz bandwidth full featured frequency counter
• Up to 160 built-in arbitrary waveforms, covering the common signals in engineering application, medical electronics, auto electronics, math processing, and other various fields
• Sample rate up to 250 MSa/s, vertical resolution 16 bits
• Arbitrary waveform sequence editing function available; arbitrary waveforms also can be generated through the PC software
• Various analog and digital modulation functions: AM, FM, PM, ASK, FSK, PSK, and PWM.
• Standard waveform combine function, capable of outputting specified waveforms combined with the basic waveforms
• Standard channel tracking function, when enabled, all the parameters of both channels are updated based on users' configurations
• USB HOST&DEVICE interface (standard); USB-GPIB function supported
• 3'' TFT color touch screen
• RS232, PRBS, and Dualtone outputs supported
