Phabrix Sx2 Series
Handheld 12G-SDI 4K/UHD Generation, Analysis & Monitoring
The Sx2 Series brings professional 12G-SDI test and measurement capabilities into a compact handheld platform. Combining signal generation, analysis and monitoring in a single instrument, it is designed for field applications, machine rooms and OB trucks.
The series includes two models. The Sx2 supports 12G, 6G, 3G, 1.5G and 270M-SDI generation and analysis across 4K, UHD, HD and SD formats. The Sx2E adds advanced SDI physical layer analysis with RTE™ Real-Time Eye technology, jitter measurement and a 12G loop output.

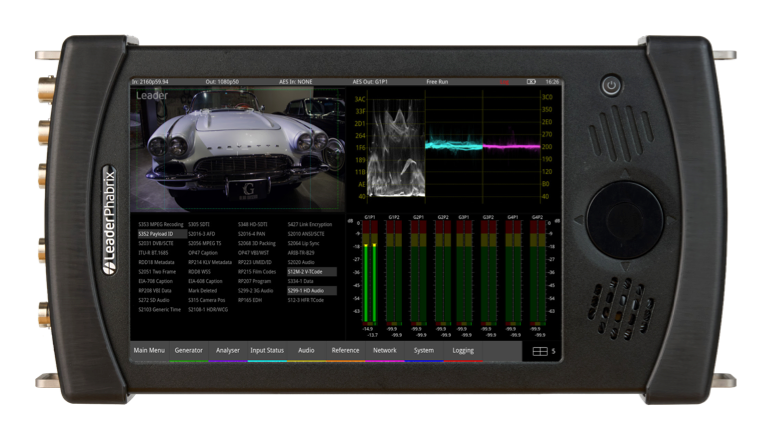

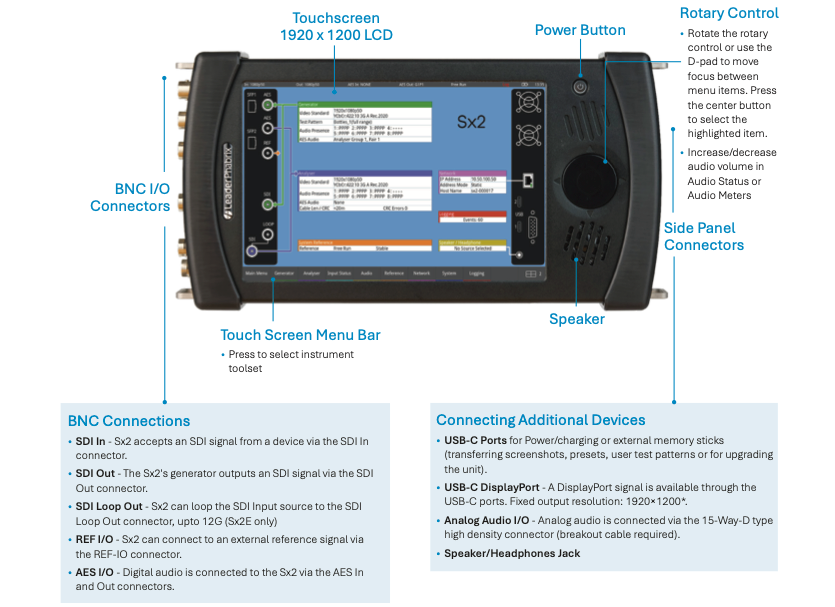

Full 4K/UHD analysis is performed over a single coaxial connection, simplifying setup while maintaining signal integrity. A 7.5-inch, 1920 × 1200 touchscreen, precision rotary control and saveable presets provide fast and intuitive access to measurement and analysis tools.
Built on the combined engineering expertise of Leader and PHABRIX, the Sx2 Series combines PHABRIX’s proven handheld design with Leader’s reputation for precision, accuracy and reliability.
