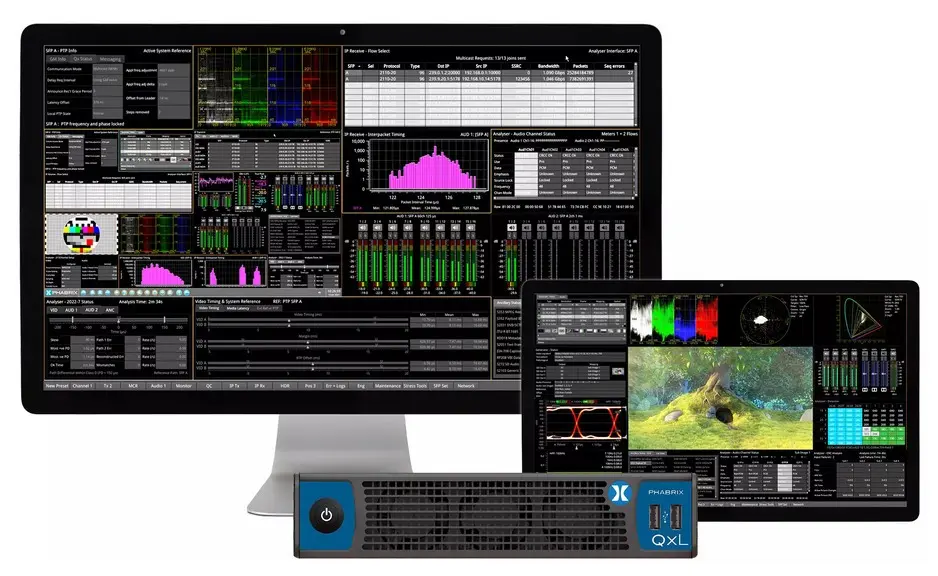

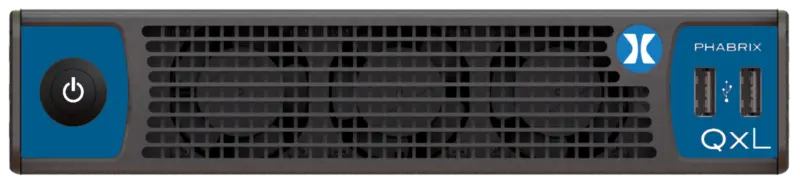

PHABRIX QxL

In addition to the standard Rasterizer and Waveform Monitor, this advanced version offers Hybrid IP/SDI, 4K/UHD and HDR/WCG generation. It can also be used for analyzing and monitoring video signals. The QxL inherits all the features of the Qx and has a common look and feel across both platforms. It provides support for 2110 and 2022-6 on generic 10G/25G SFP28 interfaces. The QxL is fully 10G/25G IP enabled as standard, with support for generation and analysis of a JT-NM TR 1001-1:2018, ST 2110-20 (video), up to four 2110-30 (PCM) and 2110-31 (AES transport) audio, as well as a 2110-40 ANC media flow with 2022-7 Seamless IP Protection Switching (SIPS) and AMWA NMOS IS-04 discovery and IS-05 device connection management. The QxL offers in-field license upgrades for SDI-UHD/4K, 2110-UHD/4K 48-60p RGB (EUHD), PCAP and Dolby E Decode. A factory-fitted hardware option provides RTE™ realtime SDI eye and jitter analysis with the further option of a highly advanced SDI-STRESS toolset.

KEY FEATURES:

• SUITE OF IP MONITORING TOOLS
• ST 2110 ANALYSIS FEATURE SET
• 12G-SDI PHYSICAL LAYER & STRESS
• AUDIO AND VIDEO GENERATION
• DOLBY® E DECODER & METADATA ANALYZER
• AMWA NMOS TOOLSET
• USER-DEFINED INSTRUMENT LAYOUT
• ANALYSIS AND MONITORING TOOLSET
• HDR VISUALIZATION AND ANALYSIS
