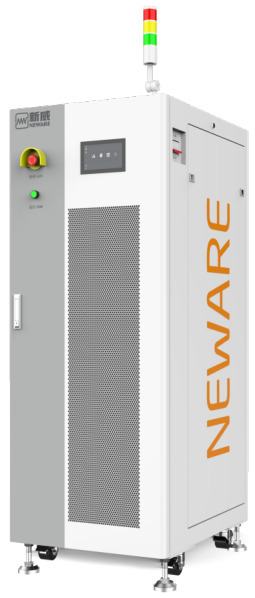

Neware CE6000 Series

As more customers adopt the Neware CE6000 Series, it is quickly becoming a powerful platform for next-generation battery testing. Designed for battery cells, modules, and complete battery packs, the CE6000 combines high power density, regenerative technology, high accuracy, and fast dynamic response in a modular test system.

Key Features

For Battery Cells, Modules, and Packs

The CE6000 Series is available in a wide range of voltage configurations, including 5V/6V, 20V, 60V, and up to 1500V, providing solutions for testing everything from individual cells to high-voltage battery packs.

High Power Density

Maximize testing capacity while minimizing laboratory space. Configurations include up to 64 channels of 5V/75A in a compact 60 × 80 × 180 cm cabinet.

Regenerative Technology

Energy generated during battery discharge can be reused directly by charging channels or returned to the electrical grid, reducing energy consumption and heat generation.

High System Efficiency

Overall system power efficiency of up to 75%.

High Measurement Accuracy

• Voltage accuracy: up to 0.02%

• Current accuracy: up to 0.05%

Modular Design

The modular architecture simplifies system configuration, expansion, assembly, and maintenance.

Fast Dynamic Response

With a current response time of ≤5 ms and current switching time of ≤10 ms, the CE6000 is well suited for pulse testing and EV driving-cycle simulation.

High-Speed Data Sampling

Sampling rates of up to 100 Hz, equivalent to one data point every 10 ms.

Parallel Channel Operation

Up to 4 channels can be connected in parallel to achieve higher test currents.

Pulse Testing

Supports pulse testing with a minimum pulse width of 100 ms.

Popular CE6000 5V Cell Tester Configurations

• CE-6016n-5V300A-H – 16 channels, 5V/300A per channel

• CE-6016n-5V200A-H – 16 channels, 5V/200A per channel

• CE-6064n-5V75A-H – 64 channels, 5V/75A per channel

• CE-6032n-5V150A-H – 32 channels, 5V/150A per channel

• CE-6004n-5V600A-H – 4 channels, 5V/600A per channel

The Neware CE6000 Series provides a flexible and scalable platform for battery R&D, characterization, cycle-life testing, pulse testing, EV simulation, and production testing.
