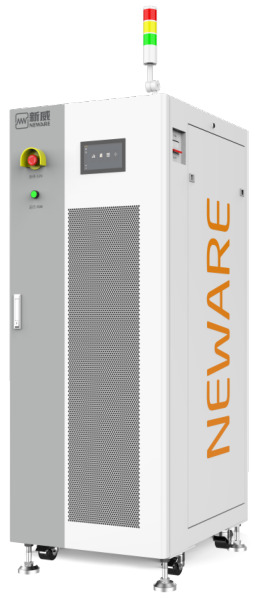

Neware CE6000 Series
Battery Testers for Cells, Modules, and Battery Packs
As more customers adopt the Neware CE6000 Series, it is quickly becoming a powerful platform for next-generation battery testing. Designed for battery cells, modules, and complete battery packs, the CE6000 combines high power density, regenerative technology, high accuracy, and fast dynamic response in a modular test system.
Key Features
For Battery Cells, Modules, and Packs
The CE6000 Series is available in a wide range of voltage configurations, including 5V/6V, 20V, 60V, and up to 1500V, providing solutions for testing everything from individual cells to high-voltage battery packs.
High Power Density
Maximize testing capacity while minimizing laboratory space. Configurations include up to 64 channels of 5V/75A in a compact 60 × 80 × 180 cm cabinet.
Regenerative Technology
Energy generated during battery discharge can be reused directly by charging channels or returned to the electrical grid, reducing energy consumption and heat generation.
High System Efficiency
Overall system power efficiency of up to 75%.
High Measurement Accuracy
Voltage accuracy: up to 0.02%
Current accuracy: up to 0.05%
Modular Design
The modular architecture simplifies system configuration, expansion, assembly, and maintenance.
Fast Dynamic Response
With a current response time of ≤5 ms and current switching time of ≤10 ms, the CE6000 is well suited for pulse testing and EV driving-cycle simulation.
High-Speed Data Sampling
Sampling rates of up to 100 Hz, equivalent to one data point every 10 ms.
Parallel Channel Operation
Up to 4 channels can be connected in parallel to achieve higher test currents.
Pulse Testing
Supports pulse testing with a minimum pulse width of 100 ms.
Popular CE6000 5V Cell Tester Configurations
CE-6016n-5V300A-H – 16 channels, 5V/300A per channel
CE-6016n-5V200A-H – 16 channels, 5V/200A per channel
CE-6064n-5V75A-H – 64 channels, 5V/75A per channel
CE-6032n-5V150A-H – 32 channels, 5V/150A per channel
CE-6004n-5V600A-H – 4 channels, 5V/600A per channel
The Neware CE6000 Series provides a flexible and scalable platform for battery R&D, characterization, cycle-life testing, pulse testing, EV simulation, and production testing.
