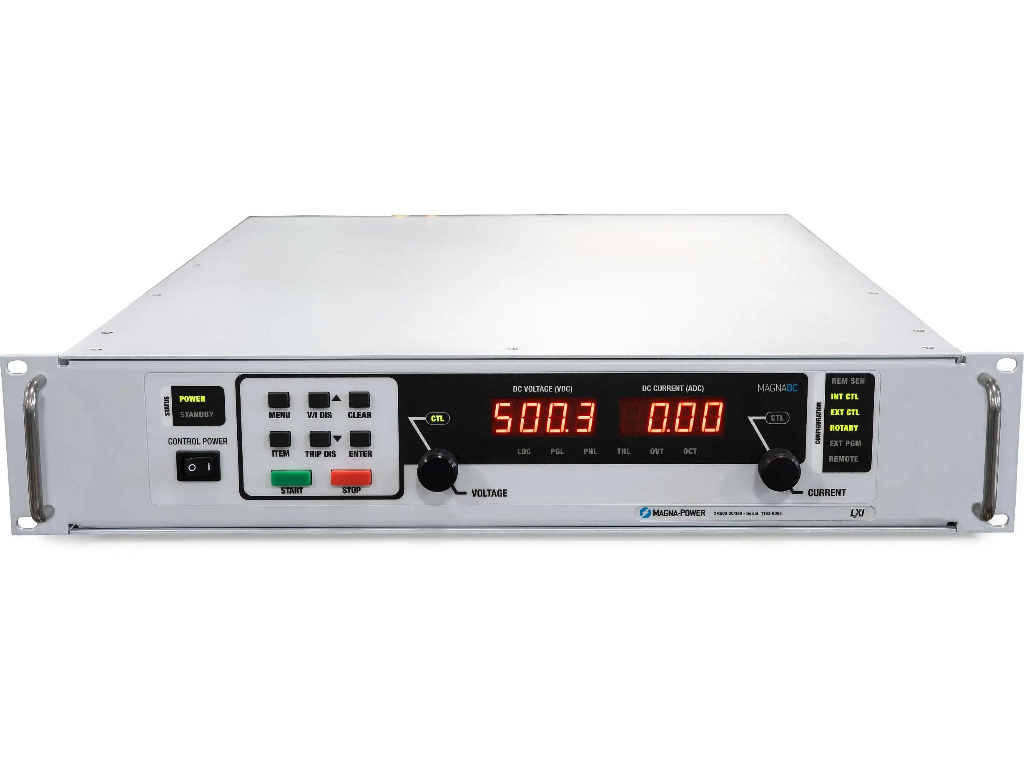

Magna Power XR Series
2U Progammable DC Power Supply 5V-10KV, 0.2-600A, 2, 4, 6, 8, 10KW
XR Series – High Voltage & High Current Programmable DC Power Supplies
The XR Series extends the capabilities of the 1U SLx Series by offering high-voltage (up to 10,000 Vdc) and high-current (up to 600 Adc) programmable DC power supplies in a compact 2U rack-mount platform. Available in power ratings from 2 kW to 10 kW, the XR Series is designed for demanding applications requiring exceptional voltage and current performance.
Featuring the widest voltage range in Magna-Power's product portfolio, the XR Series combines advanced current-fed power conversion technology with robust engineering to deliver reliable, efficient, and precise DC power. Its compact design and comprehensive remote programming capabilities make it ideal for high-voltage testing, research laboratories, industrial automation, aerospace, and advanced manufacturing environments.
Key Features
- Compact 2U rack-mount design
- Power ratings from 2 kW to 10 kW
- Output voltage from 2,000 Vdc to 10,000 Vdc
- Output current up to 600 Adc
- High-efficiency current-fed power conversion architecture
- SCPI remote programming API for seamless system integration
- High-accuracy voltage and current measurements
- Programmable protection limits (OVP, OCP, OPP, and more)
- NI LabVIEW™ and IVI drivers for simplified software development
- Ideal for high-voltage testing, R&D, industrial automation, and ATE applications
