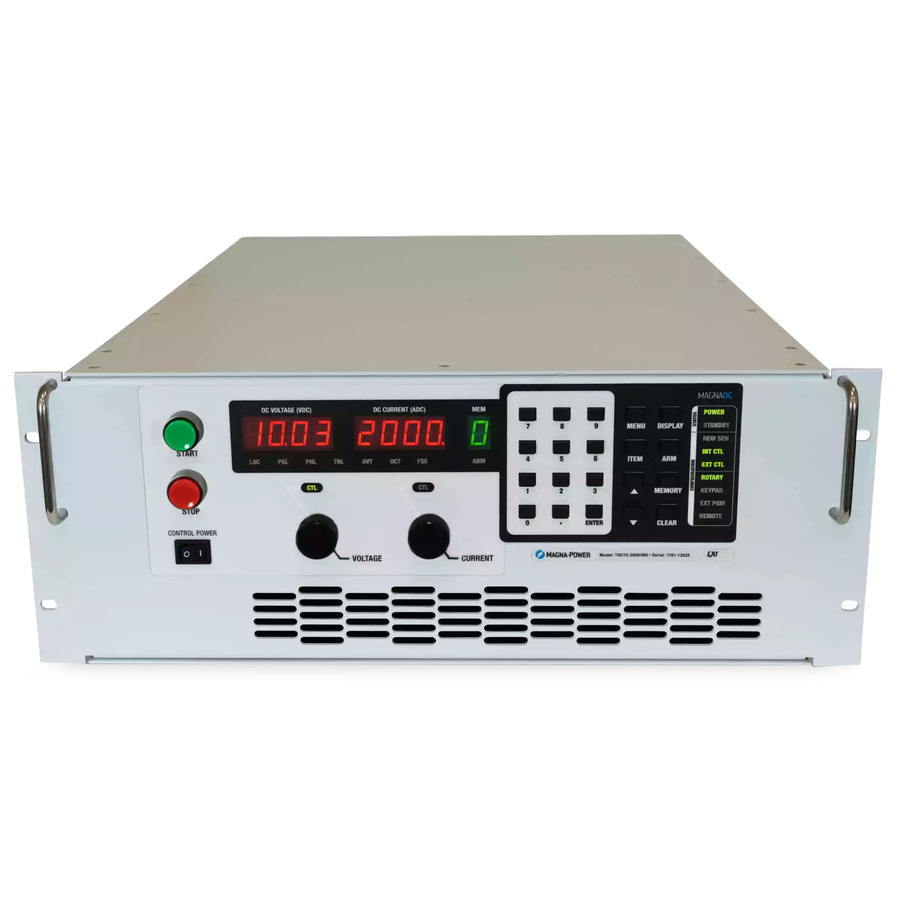

Magna Power TS Series

TS Series – High-Power Programmable DC Power Supplies

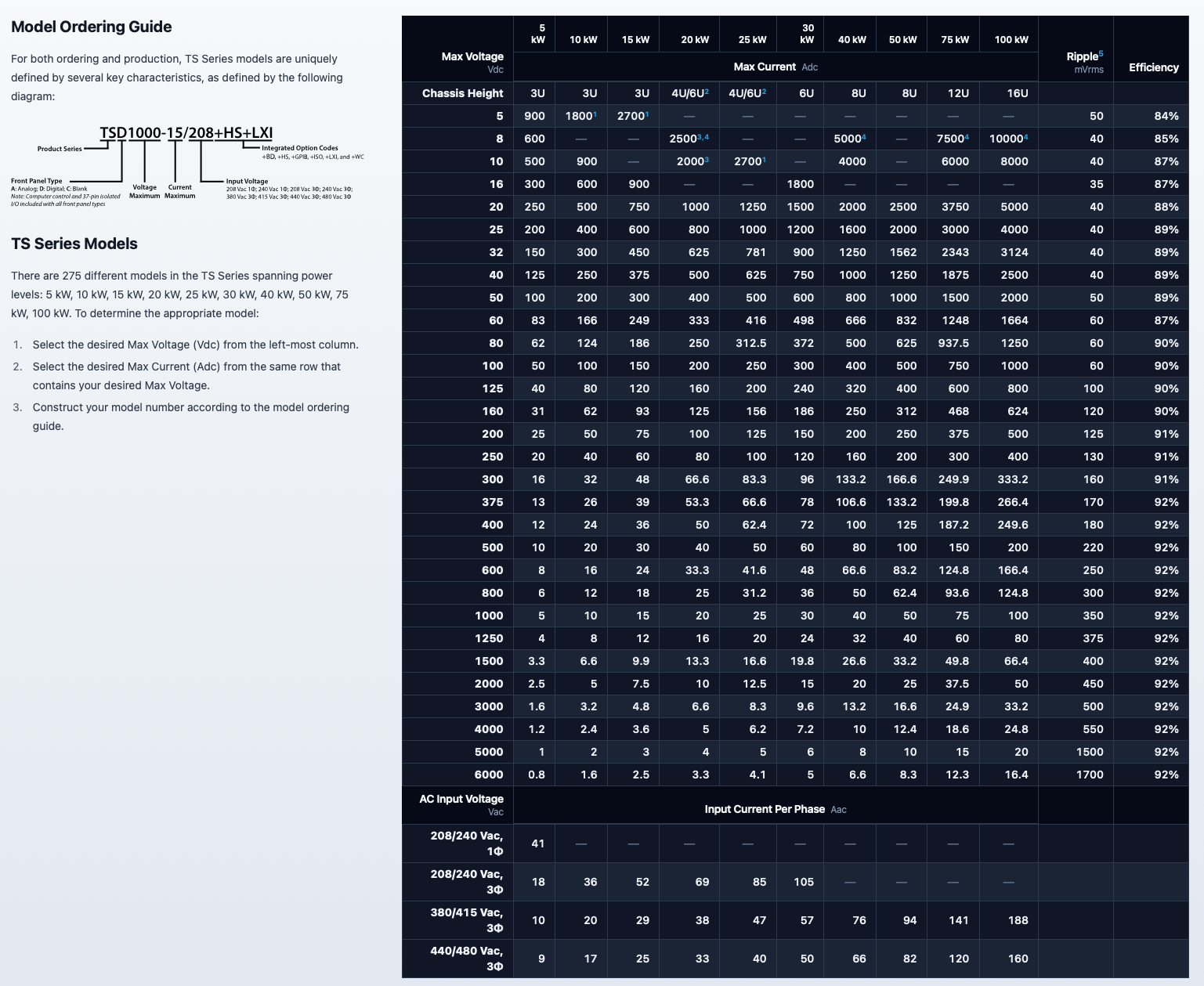

The TS Series provides 5 kW to 100 kW of programmable DC power in rugged 3U to 16U rack-mount enclosures, delivering exceptional performance for high-power testing and industrial applications. With 279 standard modelscovering output ranges from 5 V to 6000 V and 1.2 A to 10,000 A, the TS Series offers one of the industry's broadest selections of programmable DC power supplies.

Designed around Magna-Power's proven current-fed power conversion technology, the TS Series combines outstanding reliability, high-precision programming, and accurate measurement capabilities. Standard features include isolated 37-pin user I/O and comprehensive computer control interfaces, while optional water cooling and an integrated blocking diode provide added flexibility for demanding applications. The TS Series is ideally suited for large automated test systems (ATE), industrial process control, research laboratories, energy storage testing, and high-power manufacturing environments.

Key Features

• Output power from 5 kW to 100 kW
• Wide output range: 5 V to 6000 V, up to 10,000 A
• Rugged 3U to 16U rack-mount enclosures
• High-efficiency current-fed power conversion technology
• High-accuracy voltage and current programming and measurement
• Standard isolated 37-pin user I/O with comprehensive remote control
• Air-cooled design with optional water cooling
• Optional integrated blocking diode for enhanced system protection
• Ideal for ATE, industrial automation, research, energy, and high-power test applications
