Magna Power MT Series
DC Power Supply, 150KW to 3,000KW+, 32V to 6,000VDC, 25ADC to 24,000ADC

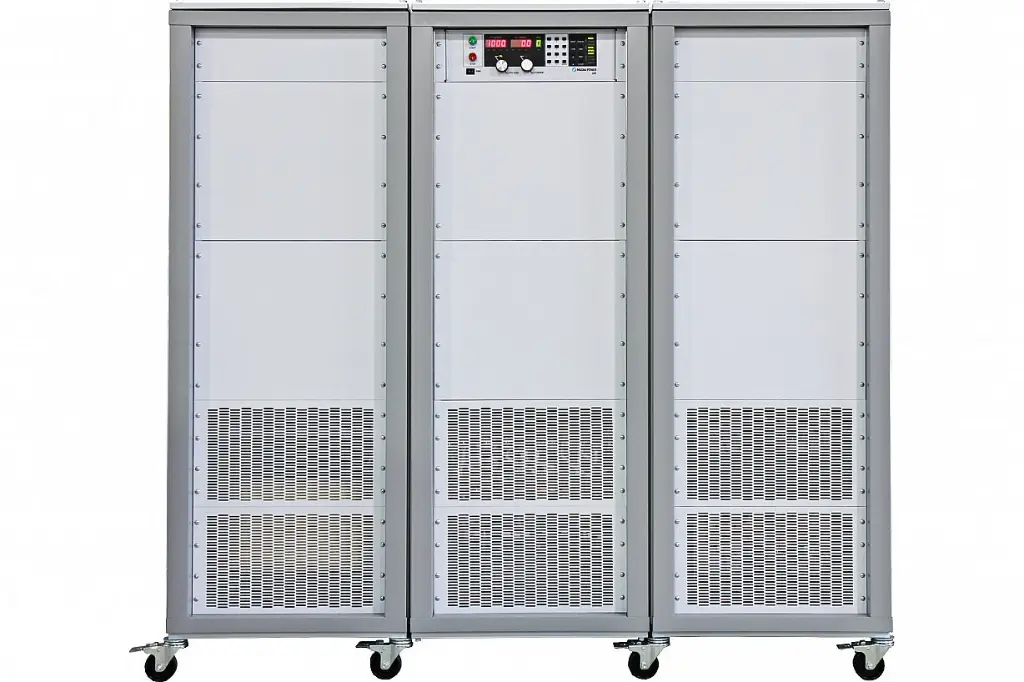

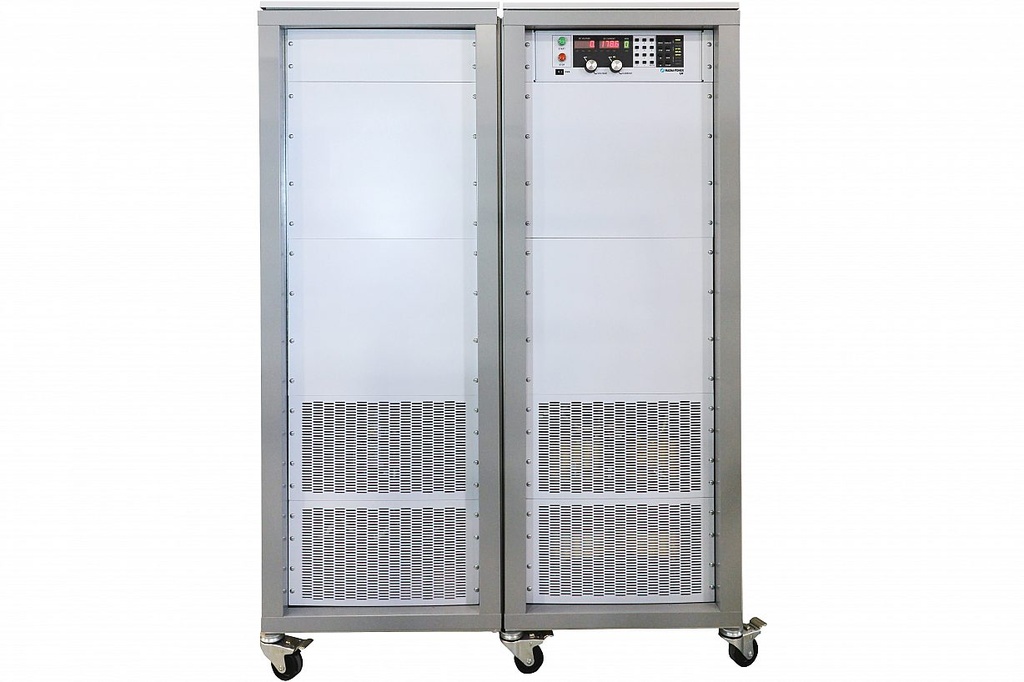

MT Series – Ultra High-Power Programmable DC Power Supplies
The MT Series delivers 150 kW to 250 kW of programmable DC power per floor-standing cabinet, providing a robust solution for the most demanding high-power applications. Designed with advanced high-frequency IGBT current-fed power conversion technology, the MT Series combines exceptional efficiency, reliability, and precise control in a scalable platform.
For applications requiring even greater power, multiple MT units can be seamlessly combined using UID47 master-slave control, enabling systems to scale into the multi-megawatt range. Standard integrated AC input circuit breakerssimplify installation, while built-in 12-pulse harmonic neutralizers on 250 kW models—and optional 24-pulse or 48-pulse external harmonic neutralizers—significantly reduce total harmonic distortion (THD), ensuring compliance with stringent power quality requirements.
The MT Series is ideally suited for large automated test systems, motor and drive testing, renewable energy simulation, battery testing, aerospace, defense, and industrial power applications.
Key Features
- 150 kW and 250 kW programmable DC power modules
- Advanced high-frequency IGBT current-fed power conversion technology

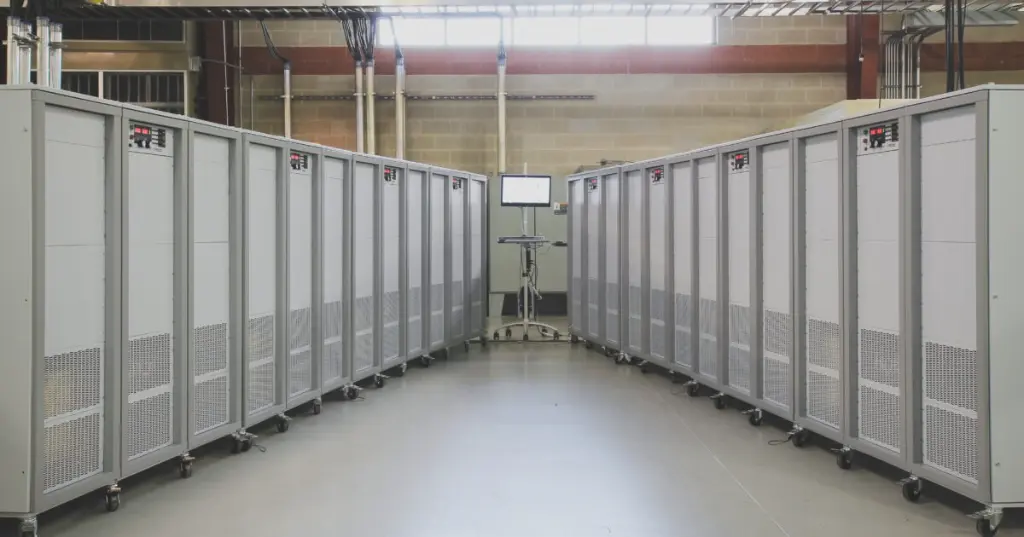

- Scalable to multi-megawatt systems using UID47 master-slave control
- Integrated AC input circuit breaker as standard
- Built-in and optional harmonic neutralizers for exceptionally low grid THD
- High efficiency and outstanding long-term reliability
- Ideal for high-power industrial testing, renewable energy, aerospace, defense, and large-scale ATE applications
