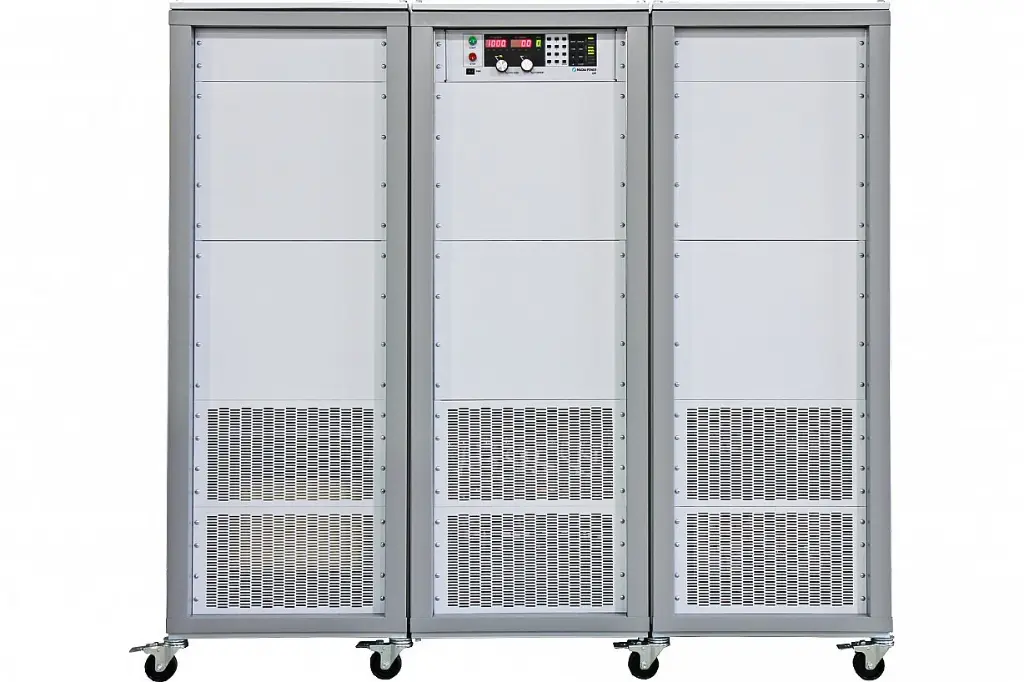

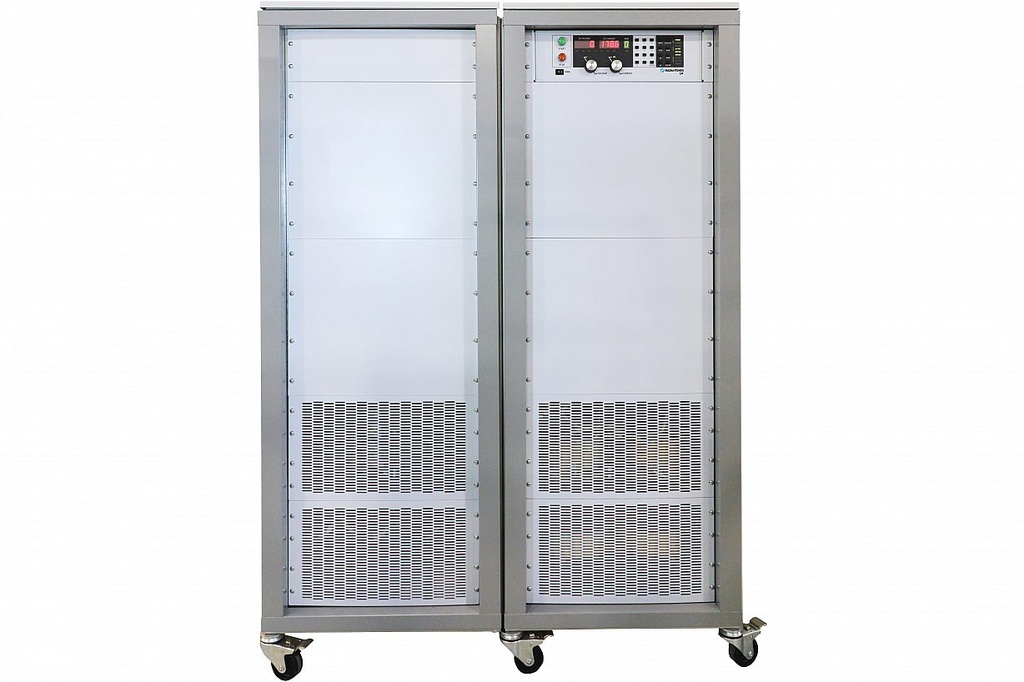

Magna Power ML Series

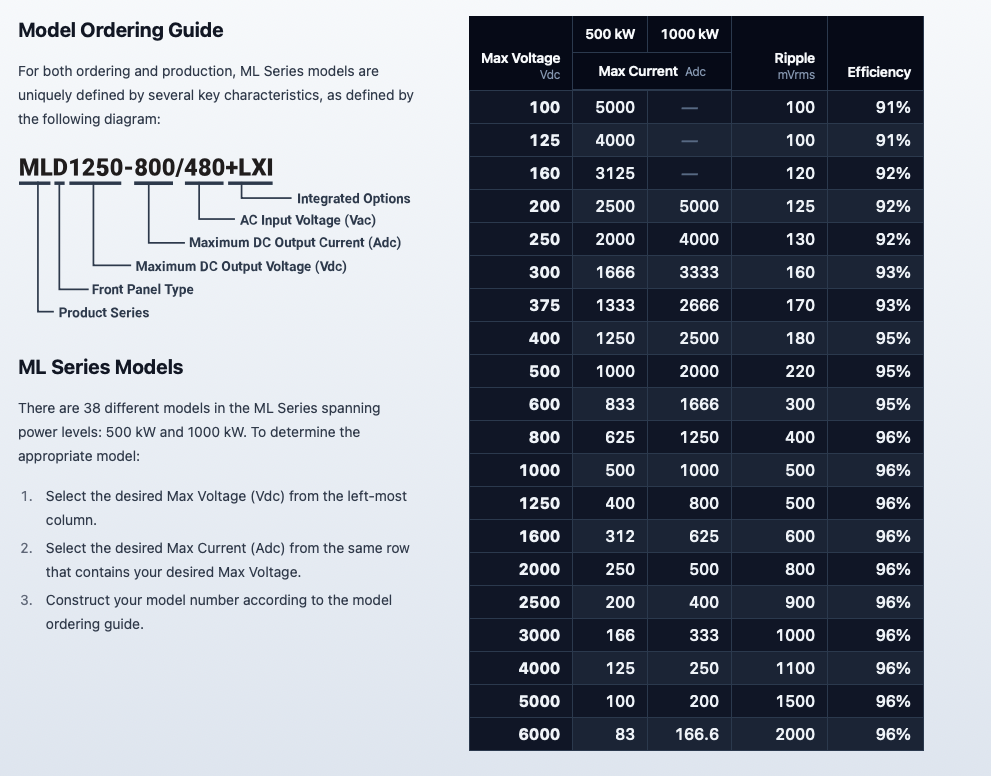

DC Power Supply, 500KW to 1,000KW expandable to 10 MW, 100V to 6,000VDC, 83ADC to 5,000ADC
ML Series – Ultra High-Power Water-Cooled Programmable DC Power Supplies
The ML Series delivers 500 kW and 1,000 kW of programmable DC power in compact, water-cooled floor-standing systems, providing exceptional power density and performance for the most demanding industrial and test applications. Offering up to four times the power density of comparable air-cooled solutions, the ML Series maximizes valuable floor space while delivering reliable, continuous high-power operation.
Built on Magna-Power's proven current-fed power conversion technology, the ML Series combines outstanding efficiency with precise 12-bit digital control and integrated harmonic neutralization for superior power quality. Multiple systems can be seamlessly connected in master-slave configuration, enabling scalable solutions exceeding 10 MW while maintaining low total harmonic distortion (THD) and exceptional system reliability.
Designed for large-scale automated test systems, renewable energy simulation, battery testing, aerospace, defense, and advanced industrial applications, the ML Series sets the benchmark for high-power programmable DC supplies.
Key Features
- 500 kW and 1,000 kW programmable DC power modules

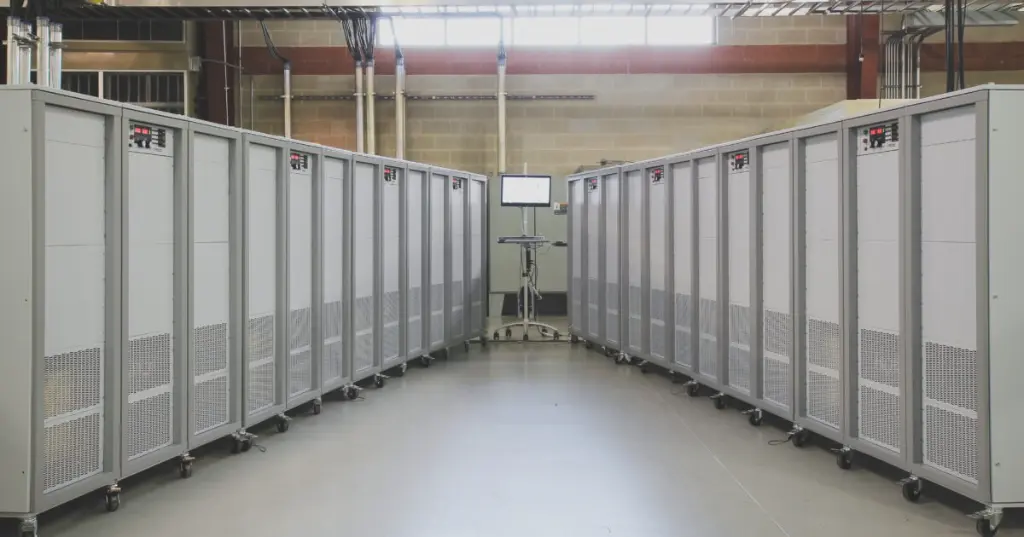

- Scalable to over 10 MW through master-slave operation
- Compact water-cooled floor-standing design with exceptional power density
- Advanced current-fed power conversion architecture
- Precision 12-bit digital control
- 12-pulse and 24-pulse AC input configurations
- Integrated harmonic neutralization for low THD
- Remote programming via SCPI command set
- Ideal for high-power testing, renewable energy, battery systems, aerospace, defense, and industrial applications
