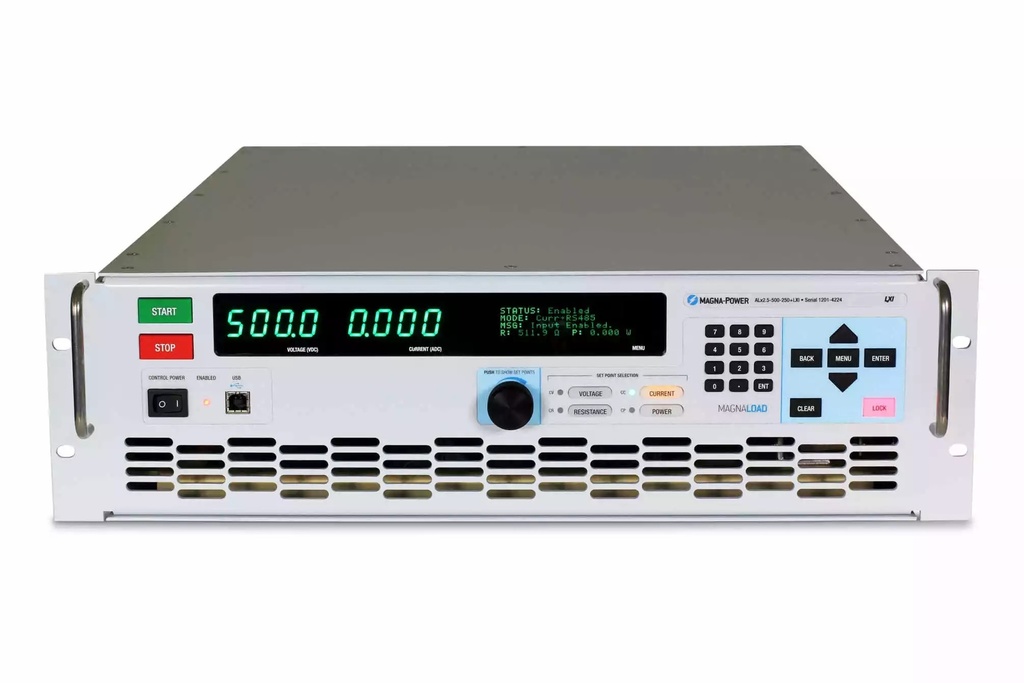

Magna-Power ALx-series
DC Electronics Loads, 1.25 kW to 20 kW, Up to 1000Vdc, Up to 4800 ADC
Price depends on configuration
Available in several configurations and accessory sets. The quote includes price, lead time and a configuration recommended for your application.
Download datasheet- Authorized importer and distributor, manufacturer warranty
- Technical advice before and after purchase
- New unit in the manufacturer’s original packaging
The ALx Series MagnaLOAD uses conventional linear MOSFET-based dissipative elements, allowing the series to achieve a very wide voltage-current operating range within the model’s maximum power rating. The use of the same heat management innovations developed for Magna-Power’s high density programmable DC power supplies ensures long product life with continuous operation at full power in environments up to 50°C ambient operating temperature. The ALx Series provides 16-bit precision in voltage, current, resistance and power control modes, along with a shunt regulator mode to act as a "smart" braking resistor or safety device on the DC bus.
- 27 models
- 1.25 kW to 20 kW power levels
- Up to 1000 Vdc input voltage
- Up to 4800 Adc input current
- MagnaLINK™ Distributed DSP Architecture
- 16-bit resolution
- Digital master-slaving with aggregation
- SCPI programming API
- UL/CSA listed, CE Mark
- Designed and manufactured in the USA
- Build-Time: 16-20 Weeks
