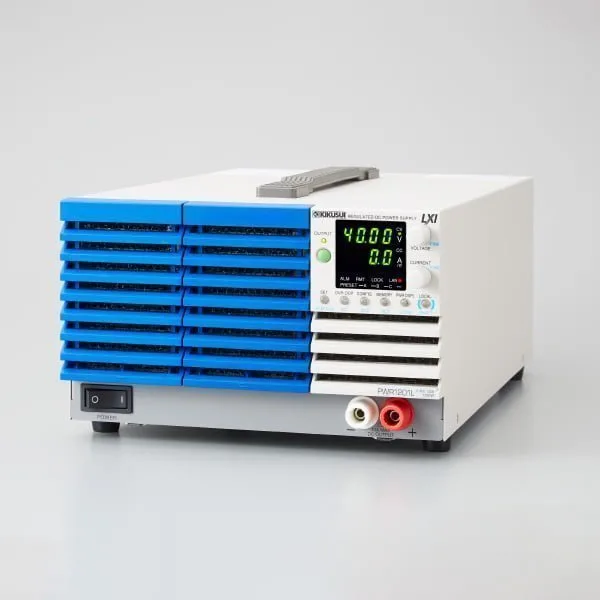

Kikusui PWR-01 Series 1200W model

The PWR-01 Series is a compact, high-performance multi-range DC power supply designed to provide exceptional flexibility across a wide variety of applications. With 16 models available, the series covers a broad range of voltage and power requirements while combining advanced functionality, flexible connectivity, and user-friendly operation.

1200W DC Power Supply – Available Output Ranges

1. 0–40V / 0–120A

2. 0–80V / 0–60A

3. 0–240V / 0–15A

4. 0–650V / 0–5.55A

Key Features

• Wide Voltage and Power Range

  • Four voltage configurations: L, ML, MH, and H

  • Available power ratings: 400W, 800W, 1200W, and 2000W

• Integrated Communication Interfaces

  • LAN (LXI compliant), USB, and RS232C as standard for easy system integration and remote operation

• Advanced Functions

  • Variable internal resistance function

  • Selectable Bleeder ON/OFF operation

  • Internal preset memory for voltage, current, OVP, OCP, and UVL settings

  • Built-in sequence function with trigger synchronization

• Remote Control and Monitoring

  • Network-based control and monitoring using VMCB (Virtual Multi-Channel Bus) functionality

• Flexible Output Control

  • Quick access to frequently used configurations, with up to 3 configurations available for registration

  • Selectable and enhanced bleeder modes

  • Programmable output ON/OFF delay

  • Soft Start / Soft Stop functions for controlled output transitions

• Reliable Operation in Demanding Environments

  • Guaranteed operation at ambient temperatures up to 50°C

  • Storage temperature range: –25°C to +60°C

  • Universal AC input: 85V to 265V

The PWR-01 Series combines high performance, compact design, advanced functionality, and flexible connectivity, making it an excellent DC power solution for R&D laboratories, production testing, automated test systems, and industrial applications.
