IFF-45TS MK XIIA/TACAN

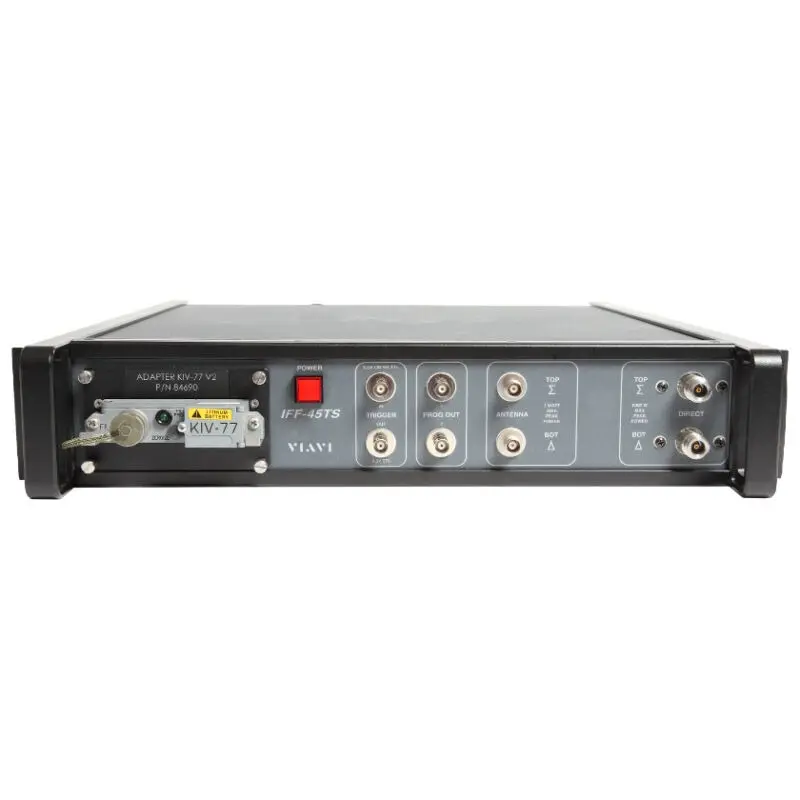

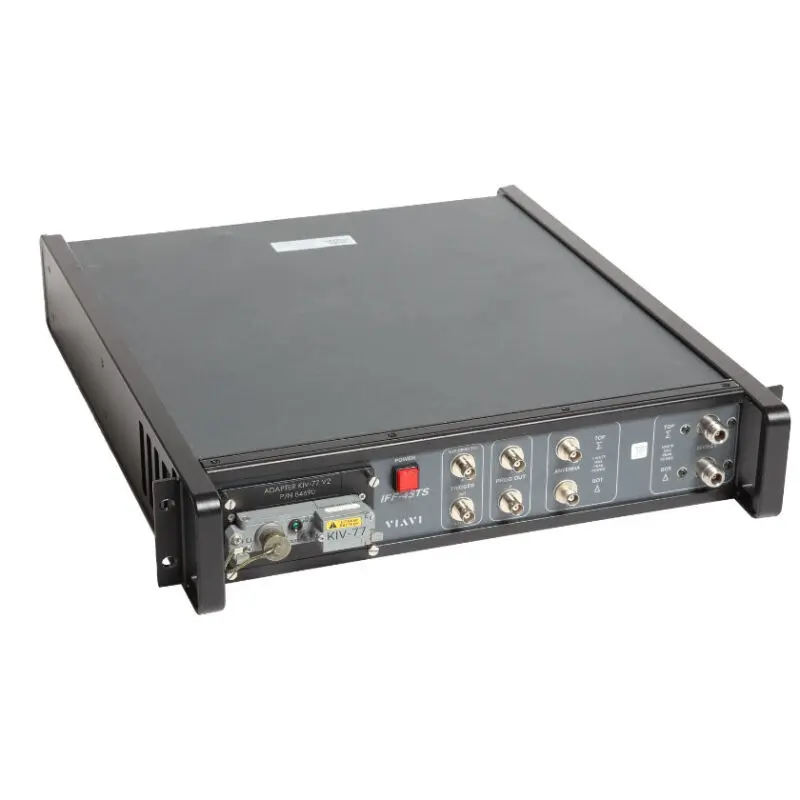

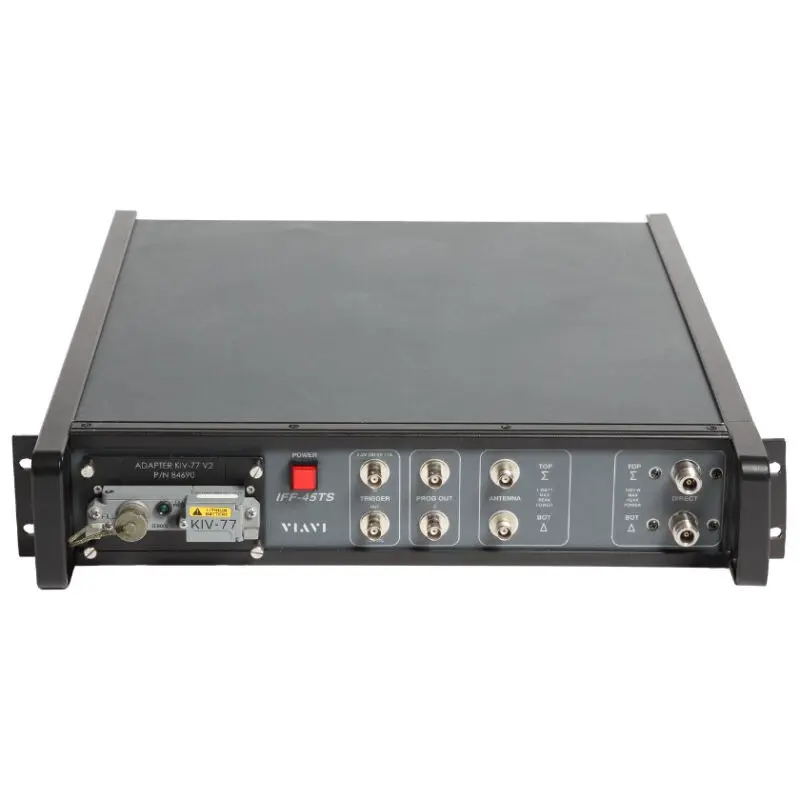

A leading-edge RF signal generator designed for engineering and manufacturing applications, as well as for use in return-to-service work The IFF-45TS Transponder / Interrogator / TACAN Bench Test Set is a versatile RF signal simulator used to test AIMS Mark XIIA transponders, interrogators and TACAN systems. It can operate under remote control from a computer or ATE system, providing support for ADS-B Out testing and monitoring ADS-B, TIS-B and Acquisition squitters. The IFF-45TS emulates either a ground or airborne transponder in six different modes.   Features

• MK XIIA AIMS certified for Level 1 and Level 2
• Accommodates DOD AIMS 04-900A Option A (KIV-78) and Option B (KIV-77)
• Dual I/O for diversity testing of transponders or SUM/DIFFERENCE on interrogators
• Separate connections for direct or over-the-air testing
• Software defined radio design allows waveform flexibility and future growth potential
• Dual signal generator design allows coordinated signal production for interference and echo testing
• Remote interfaces consist of RS-232, Ethernet and GPIB

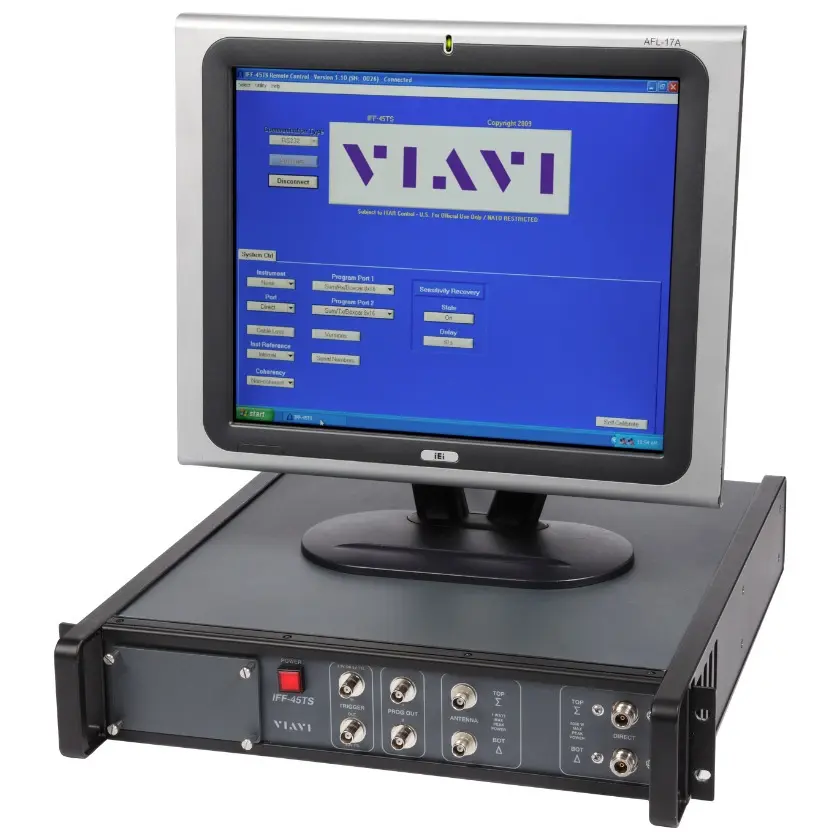

• GUI allows easy access to test features
• Industry wide use in development and end item testing of transponders and interrogators

• Engineering – Development and qualification testing for MK XIIA, ADS-B Beacon, and TACAN equipment
• Manufacturing - factory calibration and verification testing
• Depot/Service - Level 1/2, return-toservice testing
• Support for DO-260B, AIMS 03-1000B, Amendment 1 and DO-181E certification testing
