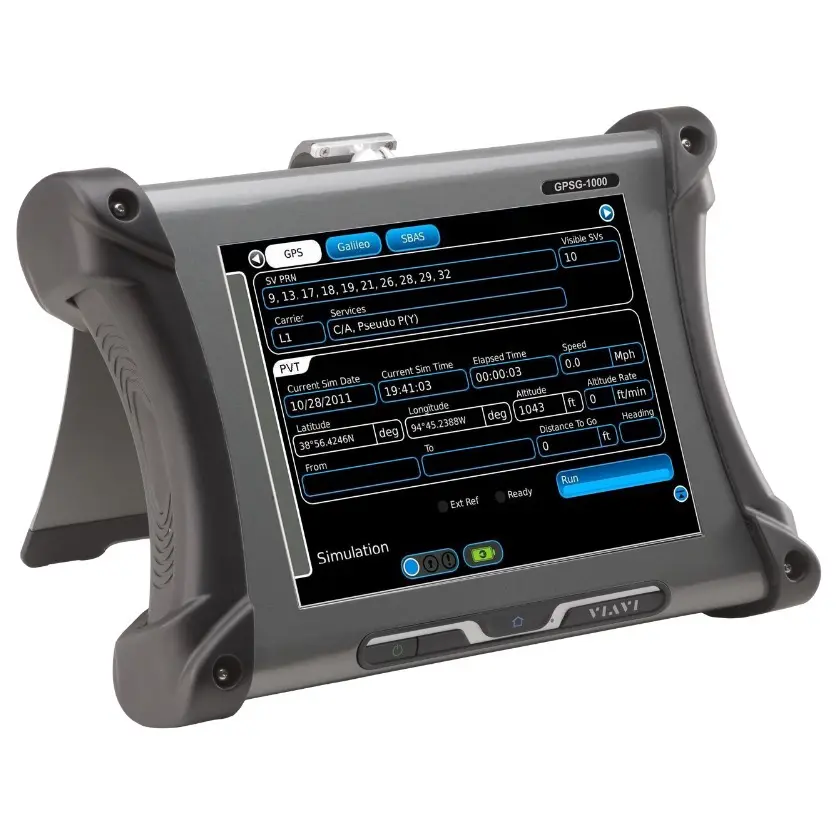

VIAVI GPSG-1000

The GPSG-1000 is a portable, easy-to use GPS and Galileo positional simulator. It fills a gap in the market by providing a low-cost 12 channel test set that creates three-dimensional simulations.   This new simulator is also designed to be software upgradable: versatile time-saving portable test set for GPS/GALILEO receivers including WAAS/EGNOS SBAS simulation; system - simulated 3D position may be user entered in latitude/longitude/height format or 3D position may be dynamically simulated utilizing a multi-leg waypoint entry scheme; satellite vehicle (SV) selection - all configurations allow GPS and Galileo satellites to be mixed.   Waypoints - Waypoints connect in 3D space, and you can choose whether to have the distance between them calculated based on range or altitude. Waypoint headings change in a realistic way; if you want to make a turn toward a waypoint, you'll need to start turning early enough for it to complete its turn before reaching the next point. SBAS satellites WAAS/EGNOS may be manually selected or automatically based on your current position.

• GPS signals simulated: L1, L1C*, L2C*, L5*
• Galileo signals simulated: E1, E5**, E5a**, E5b**
• Simultaneous GPS/Galileo simulation
• WAAS/EGNOS SBAS simulation
• Static and dynamic simulations via NMEA-0183 File Record and Playback
• 12 channel configuration available with upgrade path (RAIM supported)
• Programmable space vehicle (SV) parametrics and health
• User or built-in GPS receiver referenced time and date
• PVT data available via RS-232
• User Defined Data Transferable between Linked GPSG units
• Remote control interface Ethernet
