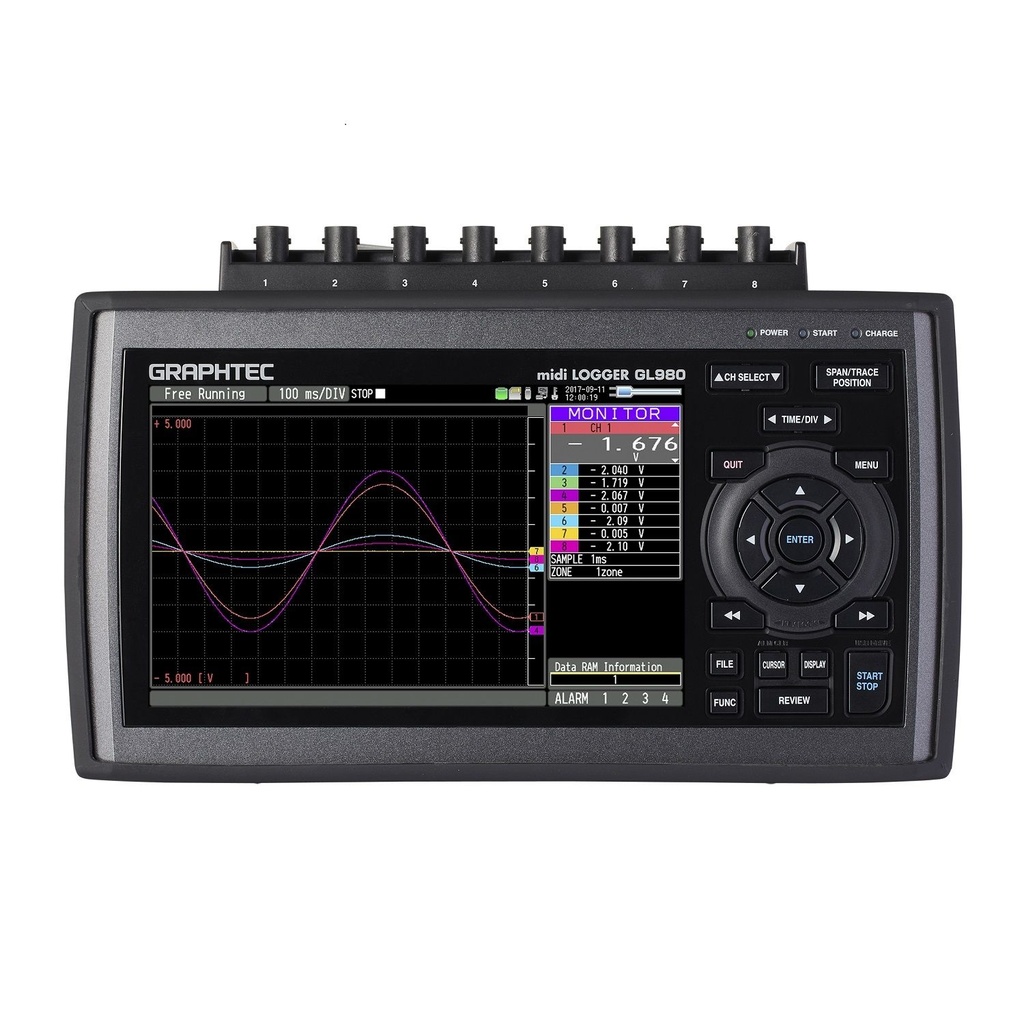

The GraphTec GL-980 is a high-speed data logger that can record 1 MS/s and measure voltage, temperature, and true-RMS values on eight isolated channels.
Main Features:
High speed 1 MS/s simultaneous sampling with isolated input
GL980 is equipped with an isolated input mechanism to protect signals from interferrences caused by noise from other channels. 16-bit A/D converter adopted to achieve hi-speed and hi-resolution measurements.- Simultaneous sampling >GL980 utilizes simultaneous sampling to eliminate slowdown in sampling rate by using multiple A/D converters in simultaneous sampling method. Eight individual A/D converters in each channel sustains the maximum sampling speed for all eight channels to measure high speed rapid voltage fluctuation and multi-channel vibration measurement. Sampling interval: 1 µs to 1 min (in steps of 1, 2, 5)
- External sampling function >Sampling of the logger is performed in sync with an external device using an external signal input. Maximum input frequency: 100 kHz * B-513 Input/Output cable for GL is required.
