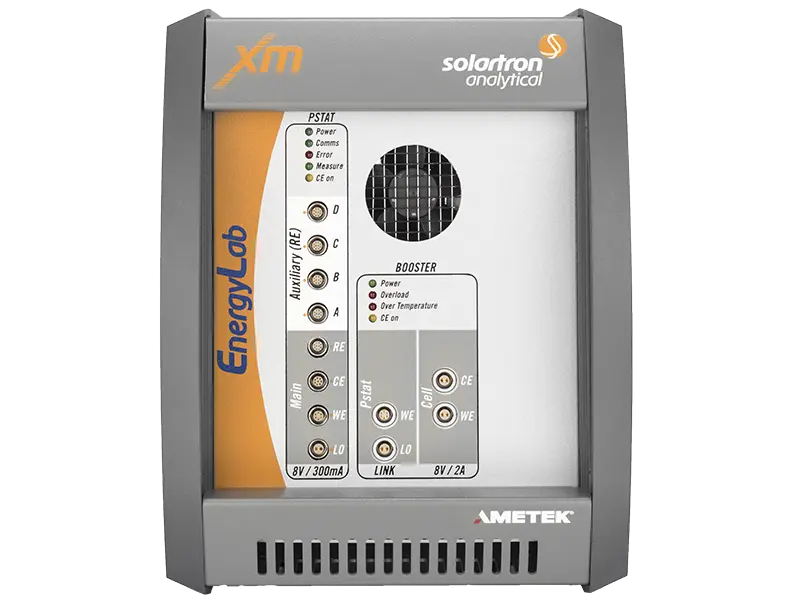

EnergyLab XM Potentiostat Galvanostat
XM instrument designed for research of batteries, fuel cells, and supercapacitors
EnergyLab XM is a specialized XM instrument designed for research of batteries, fuel cells and supercapacitors. The Apps-XM Series is a family of potentiostats, EIS analyzers and material characterization instruments. These instruments are built on the technology of ModuLab XM platforms and come in four models: EnergyLab XM, EchemLab XM, SolarLab XM, and Materials Lab XM. Each of these models combines a potentiostat, FRA, auxiliary voltage inputs for performing AC EIS across entire frequency range - single-sine, multisine, harmonics, intermodulation. These instruments have a smaller footprint than the configurable version and operate within the same XM-Studio software as other instruments in the Apps-XM Series. Highlights
- Supplied internal capability to ± 2A
- Range of external current boosters up to ± 100A
- Supplied four (4) auxiliary differential voltage inputs for anode/cathode simultaneous impedance
- XM-Studio software is included with all Apps-XM Series systems
- EnergyLab XM's impedance accuracy contour plot highlights Solartron's best in class measurement performance.
| Specifications | Specifications | ModuLab XM ECS | EnergyLab XM | EchemLab XM |
| Polarization, Compliance Voltage | Polarization, Compliance Voltage | ±8 V up to ± 100 V | ± 8V | ±100 V |
| Max Current Output | Max Current Output | ± 300 mA up to ± 100 A | ± 2 A up to ± 100 A | ± 300 mA up to ± 100 A |
| Min Current Range | Min Current Range | ± 30 nA (1.5 pA resolution) to ± 30 pA (1.5 fA) | ± 30 nA (1.5 pA resolution) | ± 30 nA (1.5 pA resolution) |
| Advanced EIS Functions Accuracy to sub 100 µΩ Auxiliary Voltage Inputs Multi-Sine (improved speed) Harmonic Analysis (cell linearity) Integrated EIS Modeling | Advanced EIS Functions Accuracy to sub 100 µΩ Auxiliary Voltage Inputs Multi-Sine (improved speed) Harmonic Analysis (cell linearity) Integrated EIS Modeling | With all FRA Modules | Standard | |
