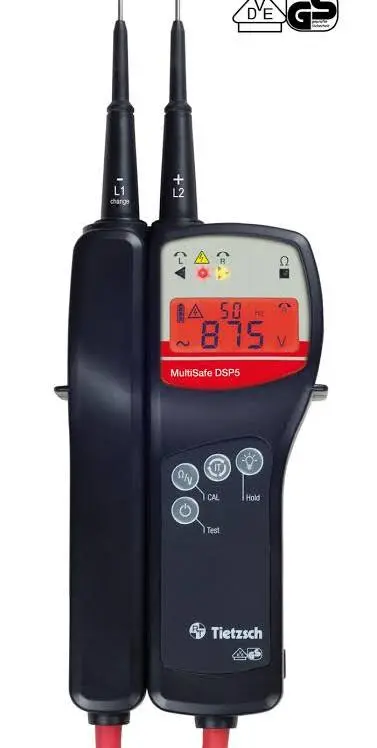

MultiSafe DSP 5 – Professional Voltage Tester up to 1,200 V AC / 1,500 V DC
The MultiSafe DSP 5 is a safe, easy-to-use professional testing instrument designed for use across all sectors of industry and electrical engineering.
The DSP 5 combines the highest level of safety with CAT IV 1000 V protection, intuitive operation, and high measurement accuracy in a rugged professional voltage tester.
Designed to meet the requirements of modern electrical testing, the DSP 5 offers a comprehensive range of functions for demanding applications. The MultiSafe also features automatic power-on and power-off for convenient operation.
Key Features
Accurate voltage measurement up to 1,200 V AC / 1,500 V DC
Extended low-voltage and battery testing range from 0.01 to 19.99 V DC
Rugged design with high safety rating: CAT IV 1000 V
Large, illuminated two-color display (red/white) for clear warning of hazardous voltages
Clear LED indication of hazardous voltage
Switchable load for suppressing induced/phantom voltages and testing RCDs
HOLD function for retaining measured values on the display
Fast continuity testing with audible indication
Accurate resistance measurement from 0.01 kΩ to 1,000 kΩ
Green LED for continuity indication
Phase tester with “POL” polarity indication and red LED
Phase sequence tester with LCD and LED indication for left/right rotation
Controller-monitored testing with error detection to help prevent incorrect indications
Continuity and phase sequence tests can also be performed while wearing insulating gloves
Additional phase sequence testing without an earth reference connection in electrical networks
Integrated measurement-point flashlight
One-handed operation when testing electrical outlets
Insulation fault detection
IP65 water and dust protection
