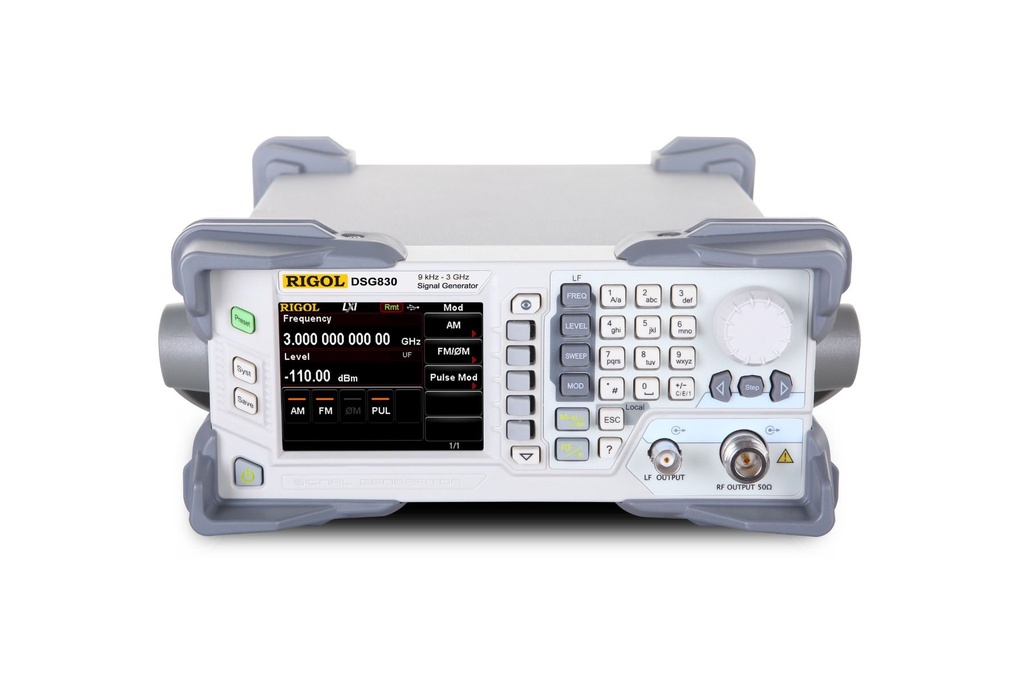

DSG830

The DSG800A delivers outstanding performance in the same class of economical RF signal sources with full frequency and power scanning capabilities, as well as AM/FM/ØM analog modulation, powerful pulse modulation and newly added IQ modulation. The DSG800A has a small footprint, light weight and superior portability--making it an excellent choice for educational laboratories and industrial production lines. The DSG830 RF signal generator offers standard analog modulation with a maximum frequency of 3.0 GHz.

• Up to 3.0 GHz frequency
• The typical value of amplitude precision is not greater than 0.5 dB
• -110 dBm to +20 dBm output power
• High signal purity; the typical value of phase noise is lower than -112dBc/Hz@20kHz
• Provide 2 ppm internal clock (standard) as well as an optional 5 ppb highly stable clock
• Provide AM/FM/ØM analog modulation functions (standard)
• Provide optional pulse modulation with up to 70 dB on/off ratio; it also provides optional pulse train generator
• All the modulation functions support both internal and external modulation modes
• It is designed with a height of 2U which saves the rack space; it also provides the rack mount kit
• Provide USB/LAN remote control interfaces (standard) and standard SCPIcommand set
• Provide the system flatness calibration (cable, attenuator, amplifier and etc.) function
