Product ID: 18743

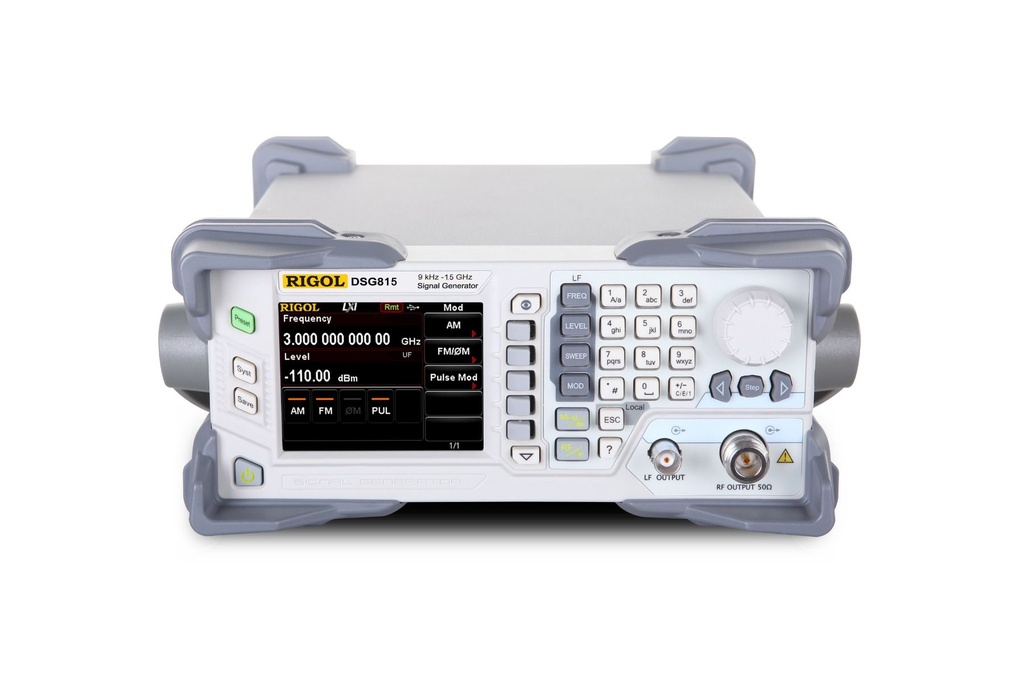

- The DSG800A provides outstanding performance in an economical RF signal source that offers full frequency and power scanning capabilities, as well as AM/FM/ØM analog modulation, powerful pulse modulation and IQ modulation. Compared to similar products, it has the smallest footprint, light weight and superior portability--making it an excellent choice for educational laboratories, industrial production lines and development and research applications. The DSG815 RF signal generator offers AM, FM, and ØM analog modulation with a maximum frequency of 1.5 GHz.
- Up to 1.5 GHz frequency
- The typical value of amplitude precision is not greater than 0.5 dB
- -110 dBm to +20 dBm output power
- High signal purity; the typical value of phase noise is lower than -112dBc/Hz@20kHz
- Provide 2 ppm internal clock (standard) as well as an optional 5 ppb highly stable clock
- Provide AM/FM/ØM analog modulation functions (standard)
- Provide optional pulse modulation with up to 70 dB on/off ratio; it also provides optional pulse train generator
- All the modulation functions support both internal and external modulation modes
- It is designed with a height of 2U which saves the rack space; it also provides the rack mount kit
- Provide USB/LAN remote control interfaces (standard) and standard SCPIcommand set
- Provide the system flatness calibration (cable, attenuator, amplifier and etc.) function
