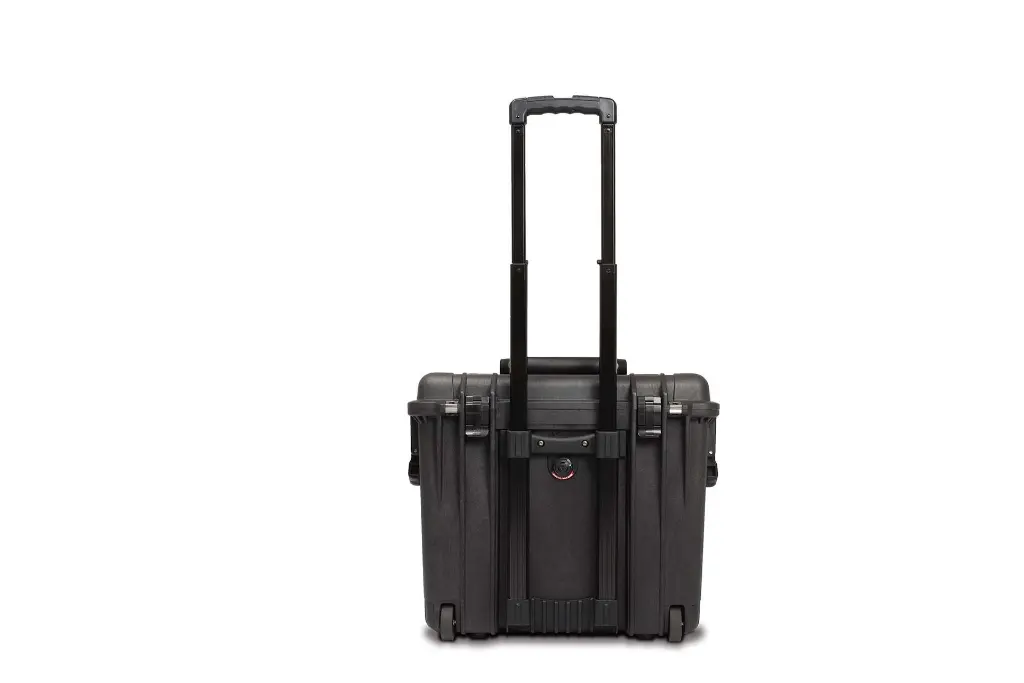

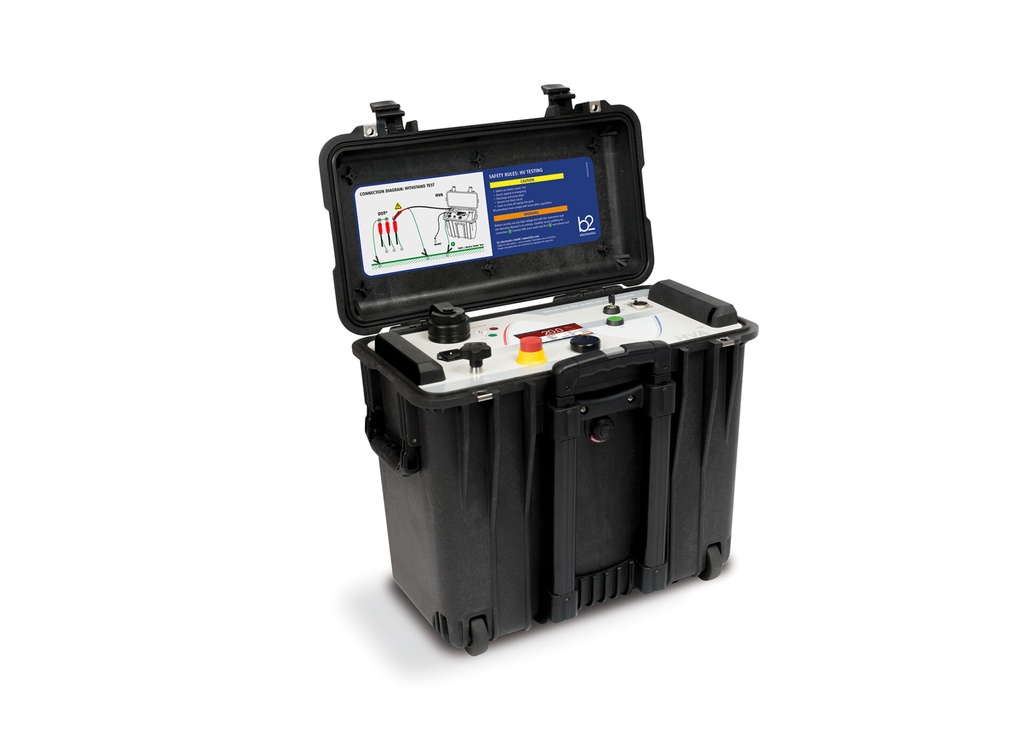

B2hv HVA45 & HVA45TD
VLF High Voltage Test Set max. 49 kVpeak, 34.6 kVrms
Price on request
Tell us about your application and we'll send a tailored quote, including lead time and an expert recommendation.
Download datasheetThe HVA45 and HVA45TD are compact, portable VLF test sets that evaluate the condition of medium voltage cables. The HVA45TD includes integrated Tan Delta diagnostics capabilities and features TD leakage current correction (guard terminal), in comparison to HVA45 which can be equipped with the TD diagnostics unit extended. They both perform VLF and DC testing, as well as sheath testing with sheath fault location mode.
