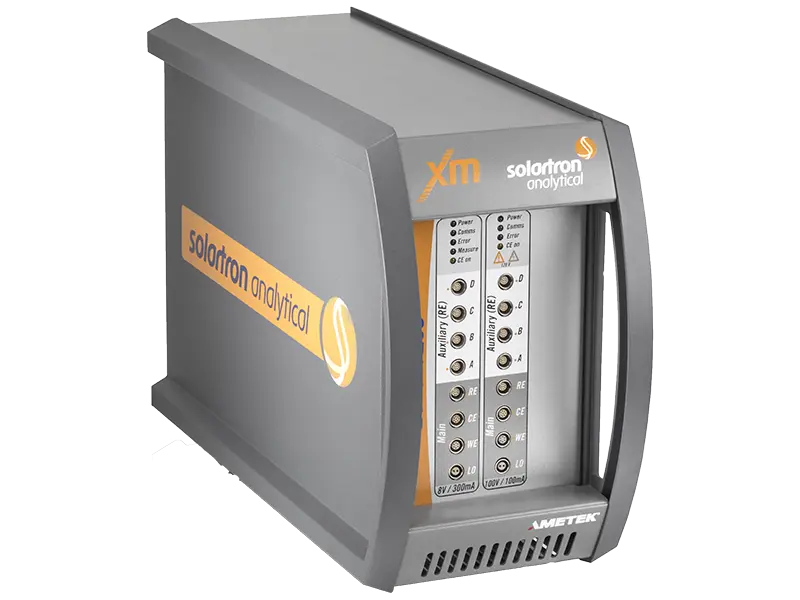

Ametek EchemLab XM Potentiostat Galvanostat

Specific XM product focused on high-voltage applications of physical electrochemistry and corrosion

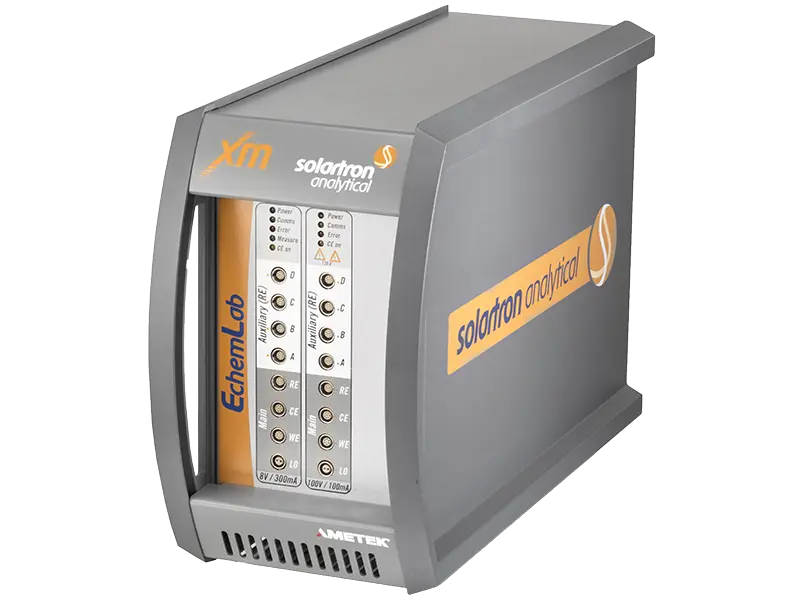

Ametek EchemLab XM Potentiostat Galvanostat - Image 2

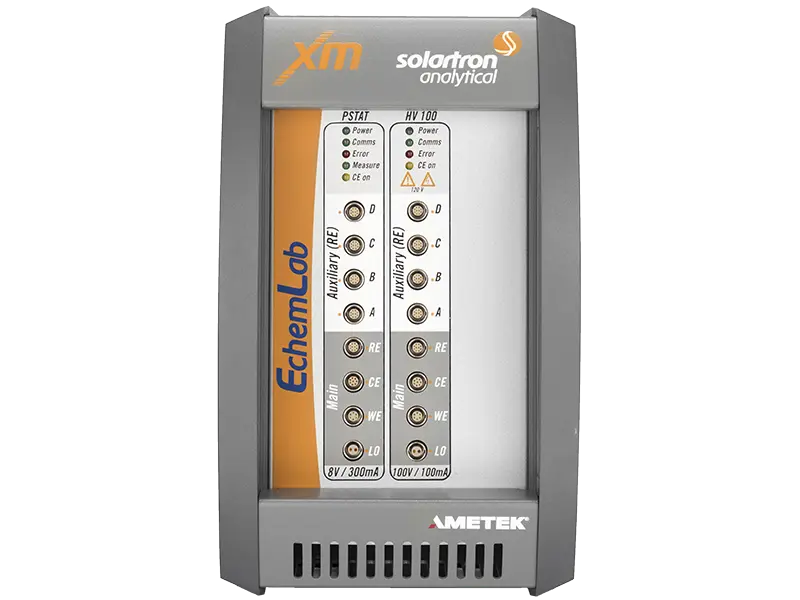

Ametek EchemLab XM Potentiostat Galvanostat - Image 3

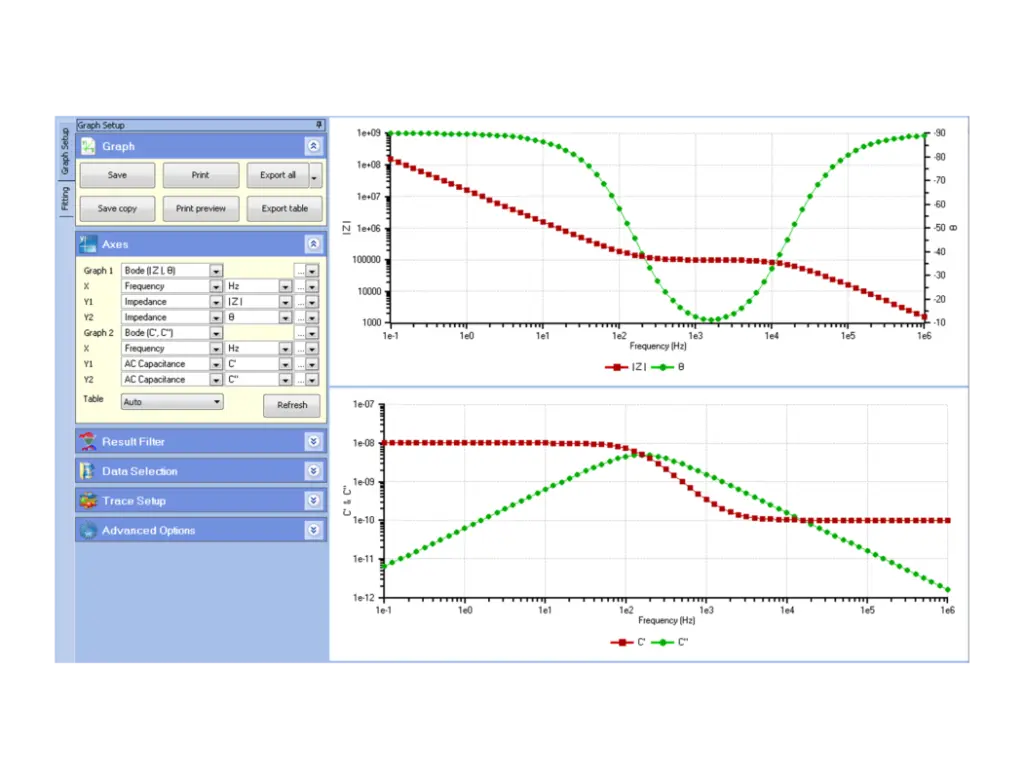

Ametek EchemLab XM Potentiostat Galvanostat - Image 4

1 / 4 Videos

Price depends on configuration

Available in several configurations and accessory sets. The quote includes price, lead time and a configuration recommended for your application.

Request a quote

Talk to an engineer WhatsApp

This combination does not exist.

Authorized importer and distributor, manufacturer warranty
Technical advice before and after purchase
New unit in the manufacturer’s original packaging

The Apps-XM Series is a family of instruments built on the technology of the ModuLab XM platform. Specific combinations of options, such as frequency response analyzers (FRA),current boosters, voltage boosters, are popular when the ModuLab XM is configured for given applications. We combine our design knowledge and industry experience to create a line of products with an application focus. These instruments have a smaller footprint to occupy less bench space, which makes them ideal for use in research labs or work environments where space is limited. Each of these models in the Apps-XM Series combine a potentiostat, frequency response analyzer, auxiliary voltage inputs. These provide the highest accuracy AC techniques for EIS across entire frequency range - single-sine, multisine, harmonics and intermodulation spectra - with results that are highly repeatable sub 100 μΩ measurements for the most demanding applications. Highlights

Supplied internal capability to ± 100 V polarization
Supplied four (4) auxiliary differential voltage inputs for DC or EIS analysis of cells in a stack
XM-Studio software is included with all Apps-XM Series systems
EchemLab XM's impedance accuracy contour plot highlights Solartron's best in class measurement performance.

Specifications	ModuLab XM ECS	EnergyLab XM	EchemLab XM
Polarization, Compliance Voltage	±8 V up to ± 100 V	± 8V	±100 V
Max Current Output	± 300 mA up to ± 100 A	± 2 A up to ± 100 A	± 300 mA up to ± 100 A
Min Current Range	± 30 nA (1.5 pA resolution) to ± 30 pA (1.5 fA)	± 30 nA (1.5 pA resolution)	± 30 nA (1.5 pA resolution)

Advanced EIS Functions Accuracy to sub 100 µΩ Auxiliary Voltage Inputs Multi-Sine (improved speed) Harmonic Analysis (cell linearity) Integrated EIS Modeling	With all FRA Modules	Standard
