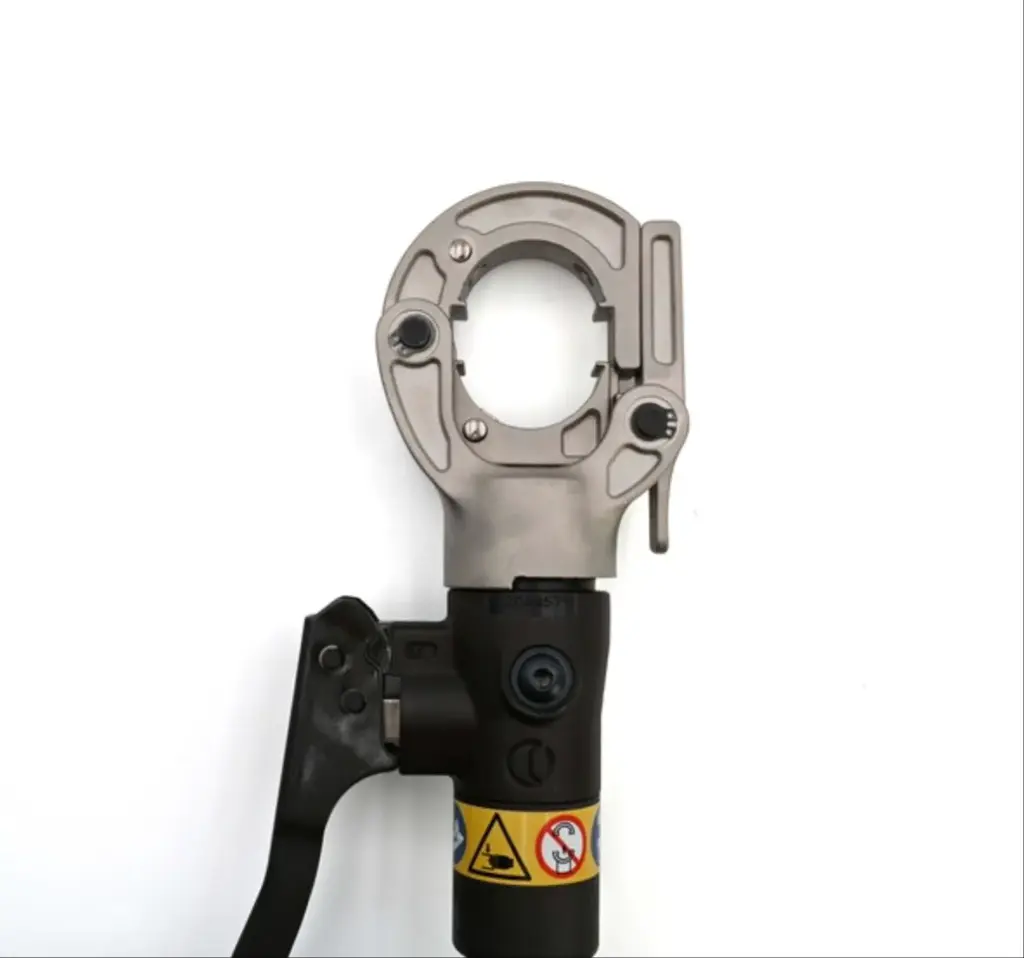

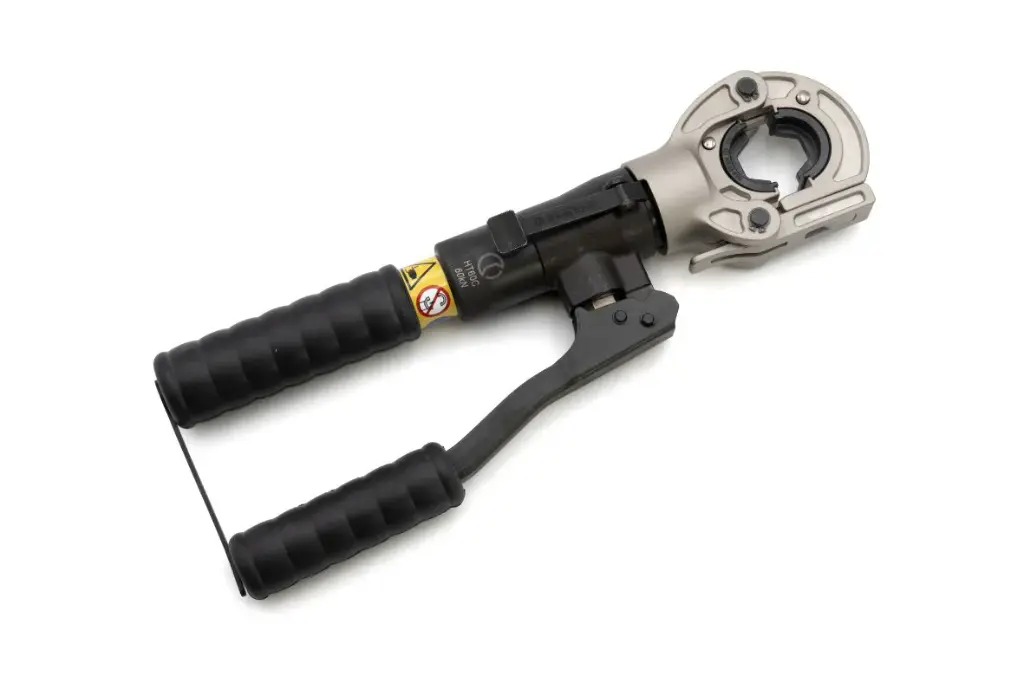

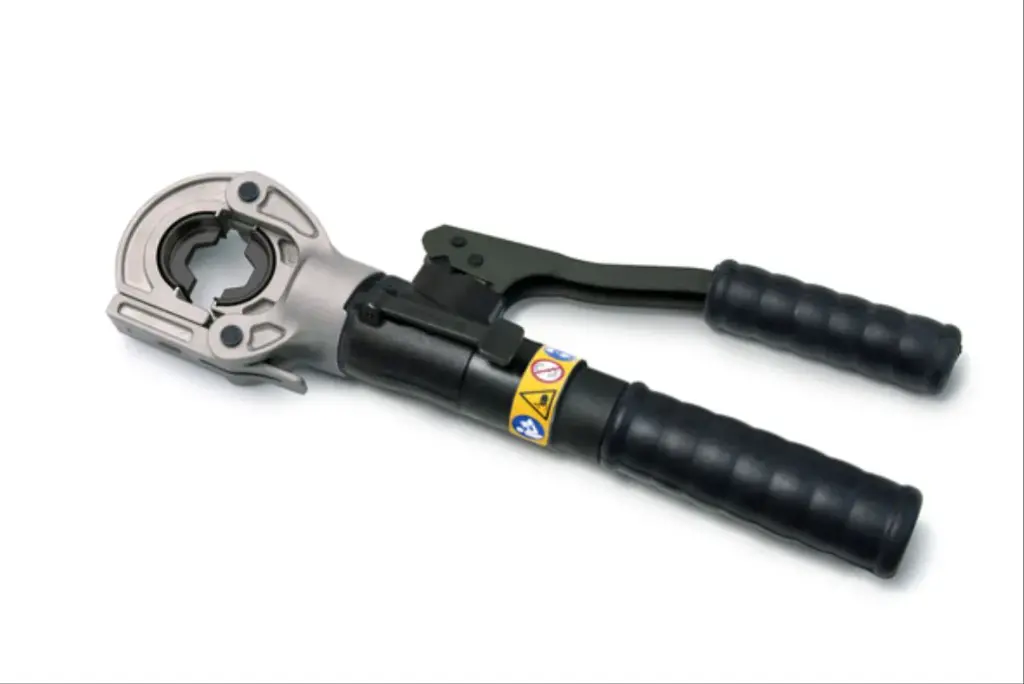

CEMBRE HT60C
HYDRAULIC CRIMPING TOOL
SKU 2670205
- Authorized importer and distributor, manufacturer warranty
- Technical advice before and after purchase
- New unit in the manufacturer’s original packaging
This lightweight and compact two speed hydraulic tool features a new design that makes it ideal for use in confined spaces. Thanks to the spring loaded handles, the dies can be advanced using only one hand, allowing the other hand to remain free for positioning the connector. For improved comfort and ease of use, the tool head rotates fully through 180 degrees.
A built in safety valve automatically bypasses the oil supply once maximum pressure is reached, while the pressure release system can be activated easily at any point during the crimping process.
Features
Technical information
Nominal crimping force | 60 kN |
Pressure control system | max pressure valve |
Crimping geometry | hexagonal; indent; trapezium |
Head shape | Openable closed |
Power supply | Manual labor |
Downloads
Weight and dimensions
Net weight in operation | 3.3 kg |
Dimensions | 382x153x62 mm |
Maximum dimensions | 382x320x62 mm |
Logistic
Unit in minimal packaging | 1 PCE |
Unit in standard packaging | 1 PCE |
Classification and data ordering
Customs code | 84678900 |
Compatibility
Supply configuration | CVB-010 canvas bag |
Need another document? Full specifications, declaration of conformity or user manual: ask us
